SKU:73851

RDS 70 Gallon Aluminum Transfer Fuel Tank/ToolBox Combo W/ Pump

GPI Pump Included
Built-In Fuel Guage
DOT Approved
Pressure Tested
Commercial-Grade Aluminum
Anti-Slosh Baffles

$2,149.99

~~$2,299.99~~ $2,149.99

Sale Sold out

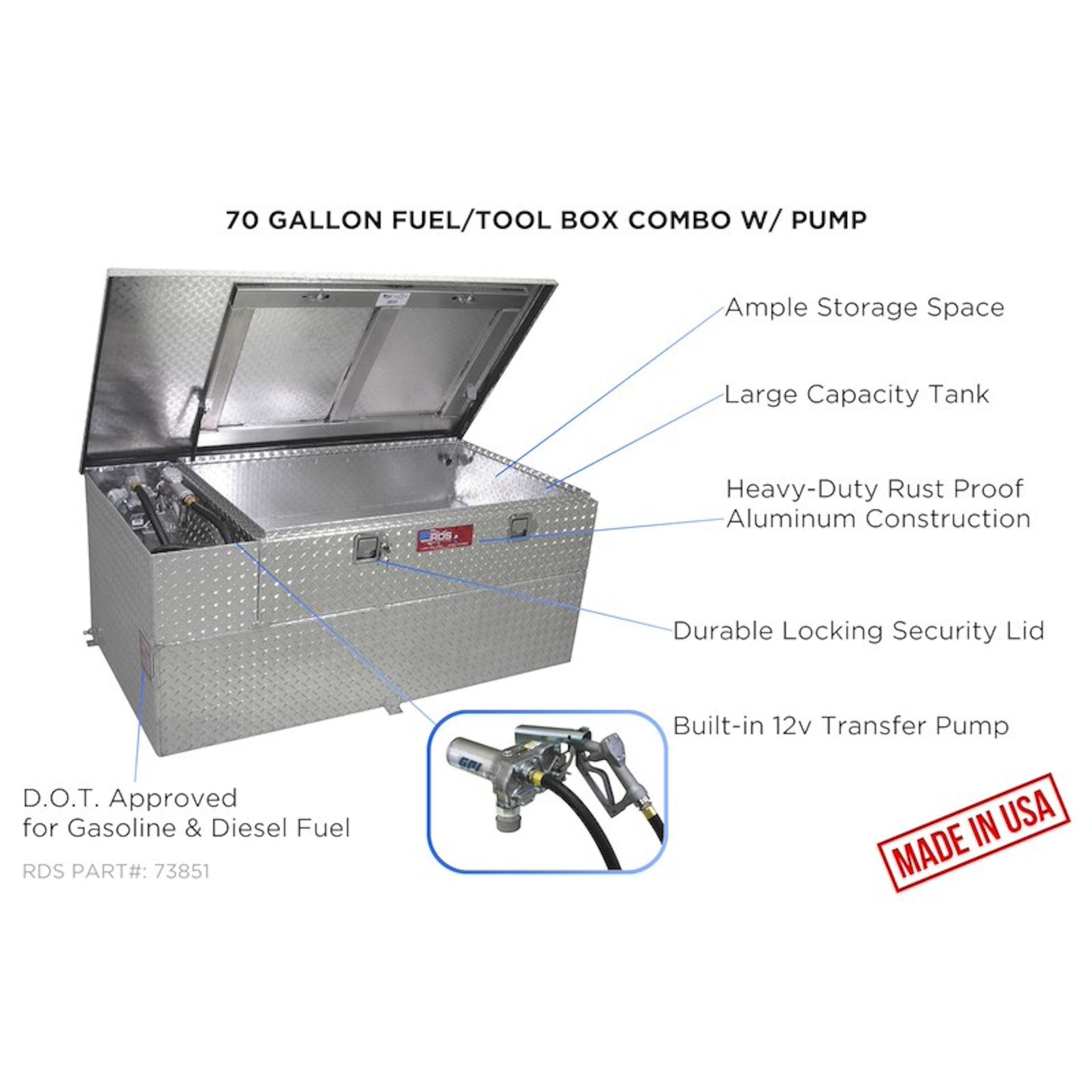

Features

Pump Included: Factory-installed GPI 12V fuel transfer pump available in 8 GPM or 15 GPM options

Multi-Fuel Capability: Suitable for diesel, gasoline, and aviation fuel when used as a transfer tank
Durable Construction: Made from corrosion-resistant aluminum for long-lasting performance
DOT Approved: Complies with safety standards for transporting fuel on the highway

Fuel Level Gauge: Top-mounted sight gauge allows easy monitoring of fuel levels
Heavy-Duty Build: 0.125 in. aluminum thickness with fully welded seams ensures strength and durability
Safety Tested: Pressure tested to ensure leak-free performance
Secure Mounting: Includes heavy-duty aluminum mounting brackets for stable installation
Slosh Reduction: Built-in baffles minimize fuel movement during transport
Enhanced Security: Lockable gas cap helps prevent unauthorized access
Spill Prevention: Rollover vent valve helps reduce risk of spills during transport
Convenient Drainage: Includes a 3/8 in. FTP drain plug for easy fuel management
Integrated Toolbox: Reinforced lid with welded braces for added strength
Gas Lift Cylinders: Provide smooth opening and hold the toolbox lid securely in place
Dual Access Handles: Stainless steel paddle handles (one locking) allow access from either side

Specs

Item Number: 73851 (8 GPM) / 73956 (15 GPM)

Brand: RDS

Capacity: 70 gallons

Shape: Rectangular

Material: Aluminum

Finish: Diamond Plate

Material Thickness: 0.125 in.

Inlet Port: 1-7/8 in.

Outlet Port: 2 in.

Hose Length: 10 ft

Mounting Hardware Included: Yes

DOT Approved: Yes

Transfer Tank Fuel Type: Diesel, Gasoline, Aviation Fuel

Auxiliary Tank Fuel Type: Diesel

Manufacturer's Warranty: 12 months parts / 12 months labor

Common Applications

Combined fuel storage and tool organization for work trucks

Refueling equipment and machinery on job sites

Agricultural fuel transport and field operations

Auxiliary diesel fuel systems for pickup trucks

Fleet service trucks requiring both fuel and tool access

Frequently Asked Questions

Q: What is this tank designed for?
A: This tank is designed for both fuel transfer and auxiliary fueling applications, allowing you to transport fuel and refuel equipment directly from your truck.

Q: What types of fuel can be used with this tank?
A: It is compatible with gasoline, diesel, and aviation fuel when used as a transfer tank. For auxiliary (gravity feed) use, it is intended for diesel applications only.

Q: Does this tank include a pump?
A: Yes. This unit includes a GPI 12V fuel transfer pump, available in either an 8 GPM or 15 GPM configuration, along with a 10 ft hose and nozzle for immediate fueling capability.

Q: Can this tank be used as an auxiliary fuel tank?
A: Yes. This tank can be used as an auxiliary diesel fuel tank when properly installed with a gravity feed kit. Auxiliary fueling is intended for diesel fuel only.

Q: What is the advantage of the toolbox combo design?
A: The integrated toolbox provides secure storage for tools and accessories while combining fuel storage in one space-efficient unit in the truck bed.

Q: Is this tank safe for transport on public roads?
A: Yes. RDS transfer tanks are DOT approved for transporting approved fuels when properly installed and used.

Q: Will this tank rust over time?
A: No. The tank is constructed from heavy-duty aluminum, which resists rust and helps prevent fuel contamination.

Q: Does the tank have internal baffling?
A: Yes. Built-in baffles help reduce fuel sloshing during transport, improving stability and safety.

Q: What kind of maintenance is required?
A: Routine maintenance includes checking fittings, monitoring the pump and hose condition, and replacing any inline fuel filters as needed.

Q: What size equipment can this tank fuel?
A: With a 70-gallon capacity and available 8 or 15 GPM pump options, it is well suited for fueling multiple pieces of equipment, fleet vehicles, and job site machinery.

Q: Should I choose the 8 GPM or 15 GPM pump?
A: The 8 GPM pump is ideal for standard equipment and controlled fueling, while the 15 GPM option provides faster fill times for larger equipment and higher-volume applications.

Q: Can the pump run off a truck battery?
A: Yes, the included 12V pump can be powered by a standard vehicle battery. It can also be powered using the PowerMate Converter for added portability and convenience.

View full details

Product Description

Dual Purpose

Transfer Tank — This unit includes a pre-installed GPI 12V pump, hose, and nozzle, allowing you to fuel equipment and vehicles directly from the tank.
Auxiliary Diesel Tank — Gravity-feed into your truck's factory tank with our Diesel Auxiliary Install Kit for extended range.

The RDS 70-gallon aluminum transfer fuel tank and toolbox combo with pump is a commercial-grade solution designed to provide efficient fuel storage and on-site refueling in one space-saving unit. Constructed from heavy-duty no-rust aluminum with fully welded seams, this tank delivers long-lasting durability and corrosion resistance in demanding environments.

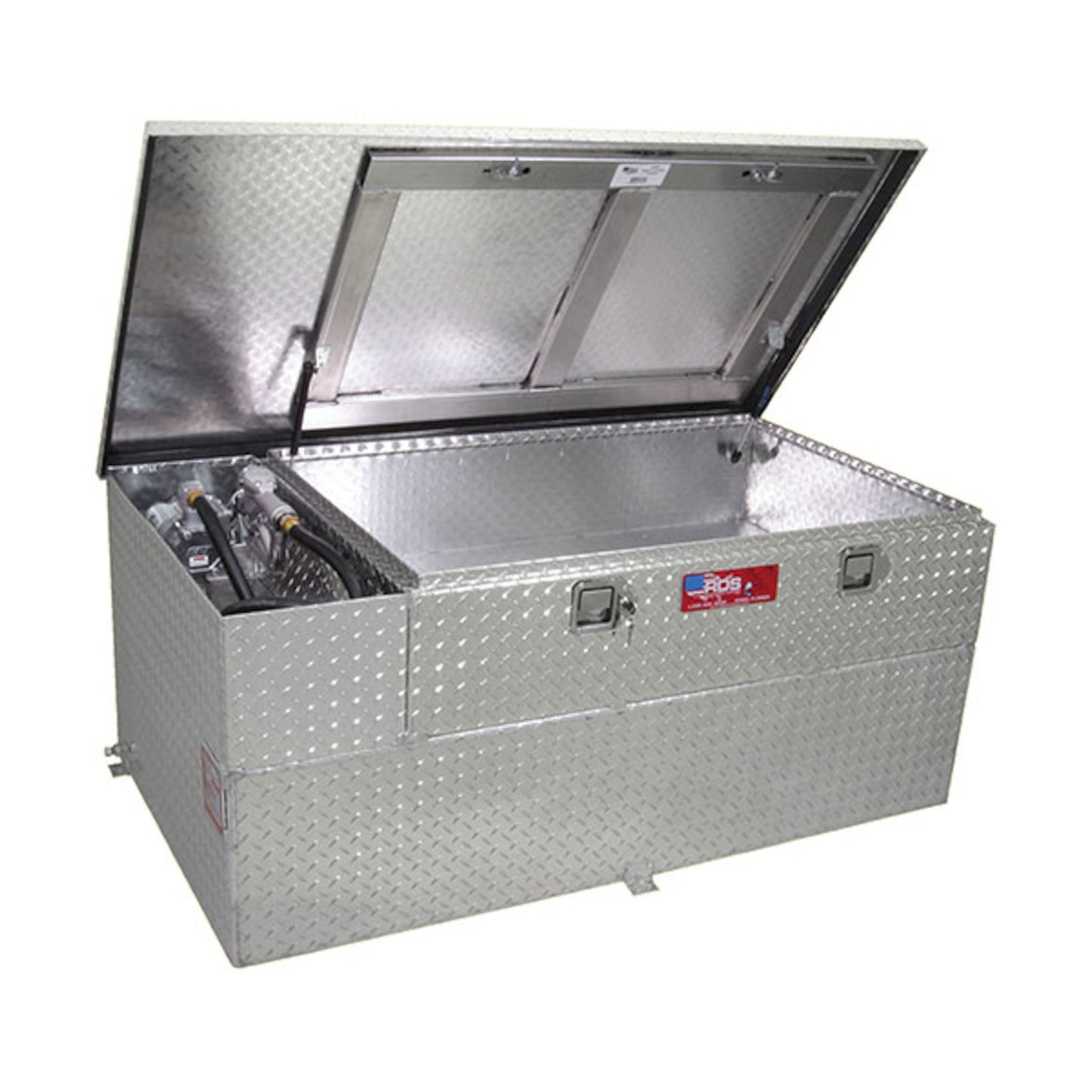

The integrated toolbox features a reinforced lid with welded braces, gas-filled lift cylinders for smooth operation, and dual stainless steel paddle handles for secure access from either side. The enclosed pump and fill area provides added protection while keeping components secure during transport. A built-in fuel level gauge allows for quick and convenient monitoring of fuel levels during use.

Equipped with a factory-installed GPI 12V fuel transfer pump, this tank is available in both 8 GPM and 15 GPM configurations to match your fueling needs. Anti-slosh baffles help reduce fuel movement during transport, while a rollover vent valve enhances safety. Each tank is cleaned and pressure tested before shipping to ensure leak-free performance and dependable operation.
