  • Fill-Rite Particulate Filter with ¾" Filter Head Kit

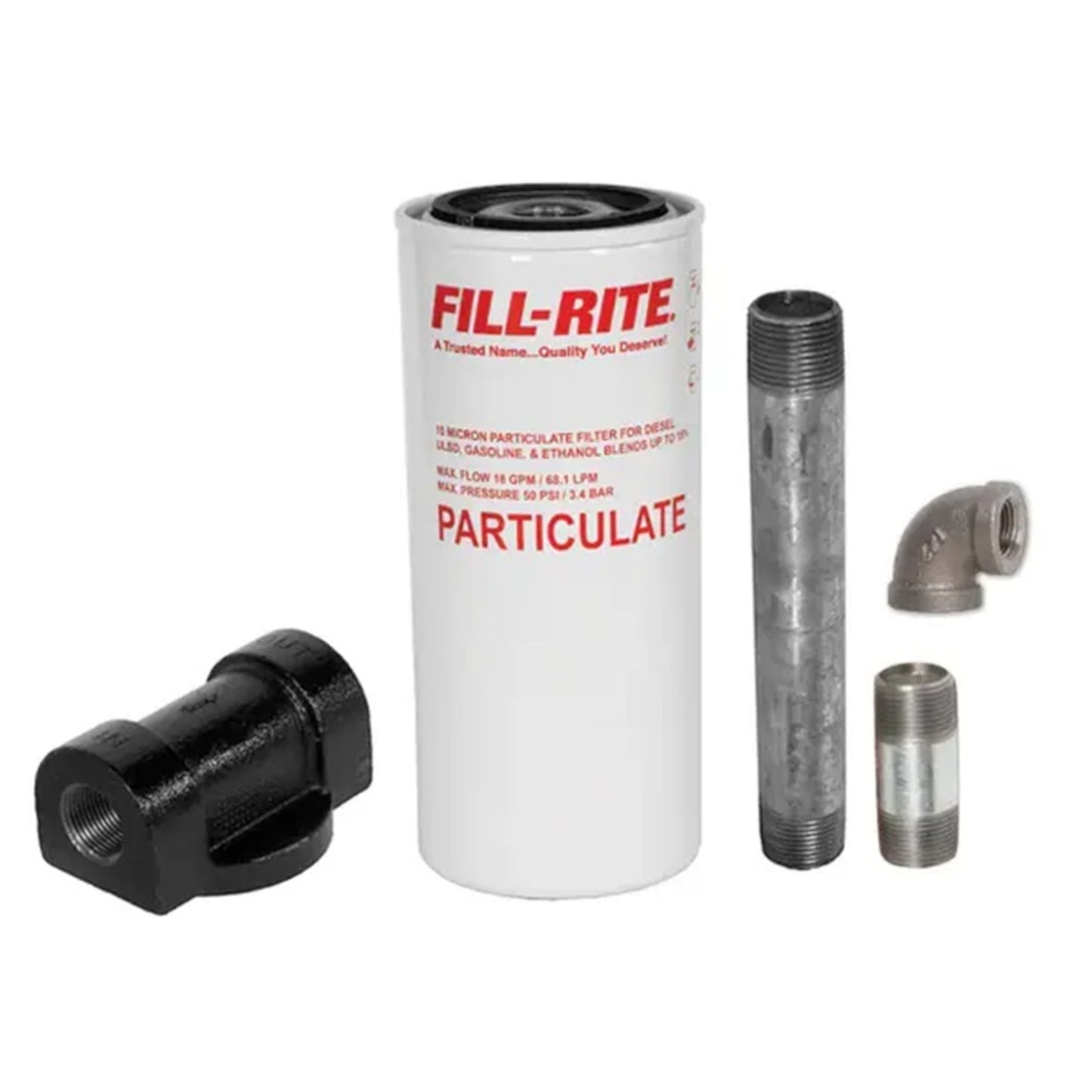

  • Fill-Rite 1200KTF7018 10 micron particulate fuel filter kit, including F1810PM0 spin-on filter canister and installation fittings (elbow, nipples) for diesel, gasoline, and biodiesel

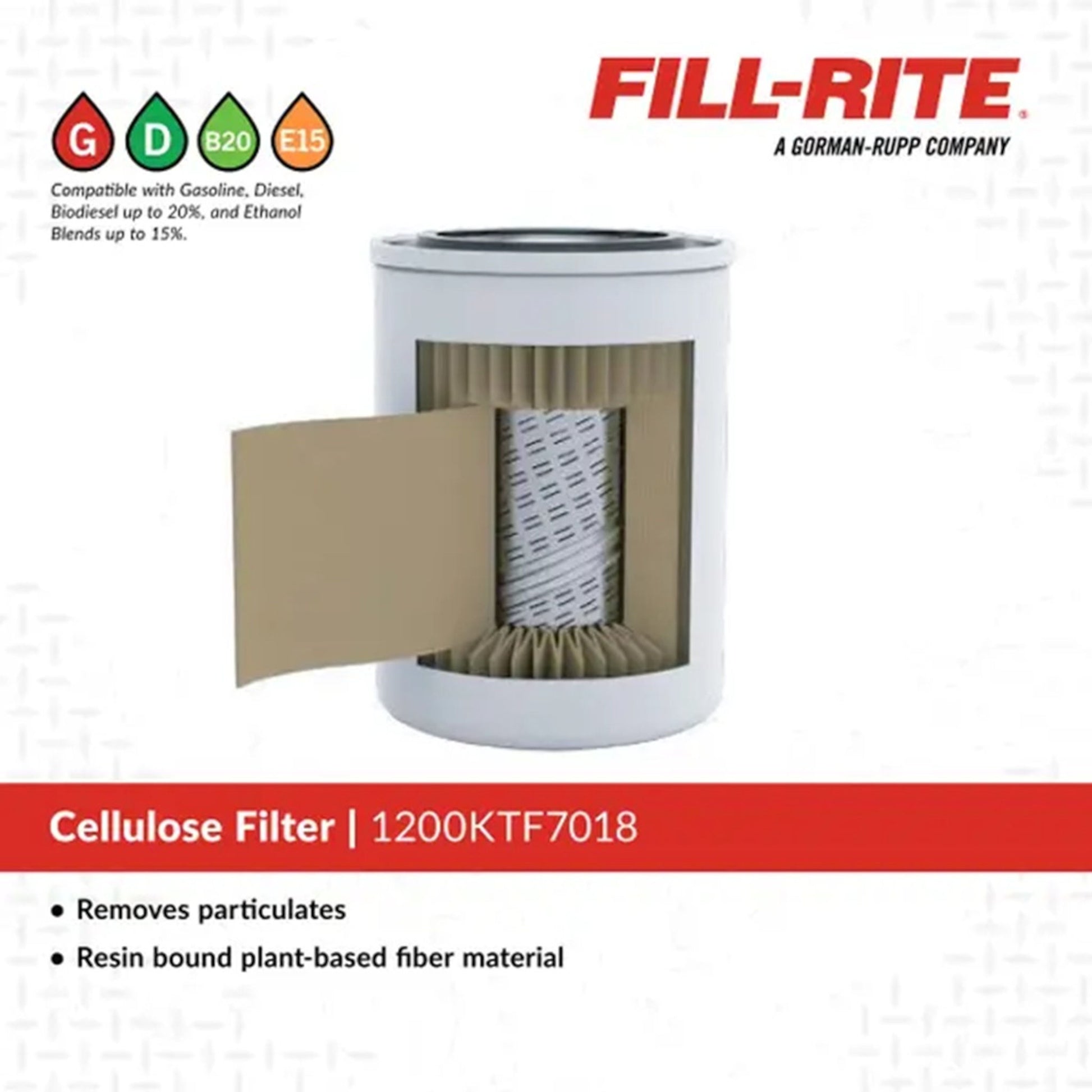

  • Cutaway view of Fill-Rite 1200KTF7018 particulate filter showing resin-bound plant-based cellulose media; compatible with gasoline, diesel, B20 biodiesel, and E15 ethanol blends

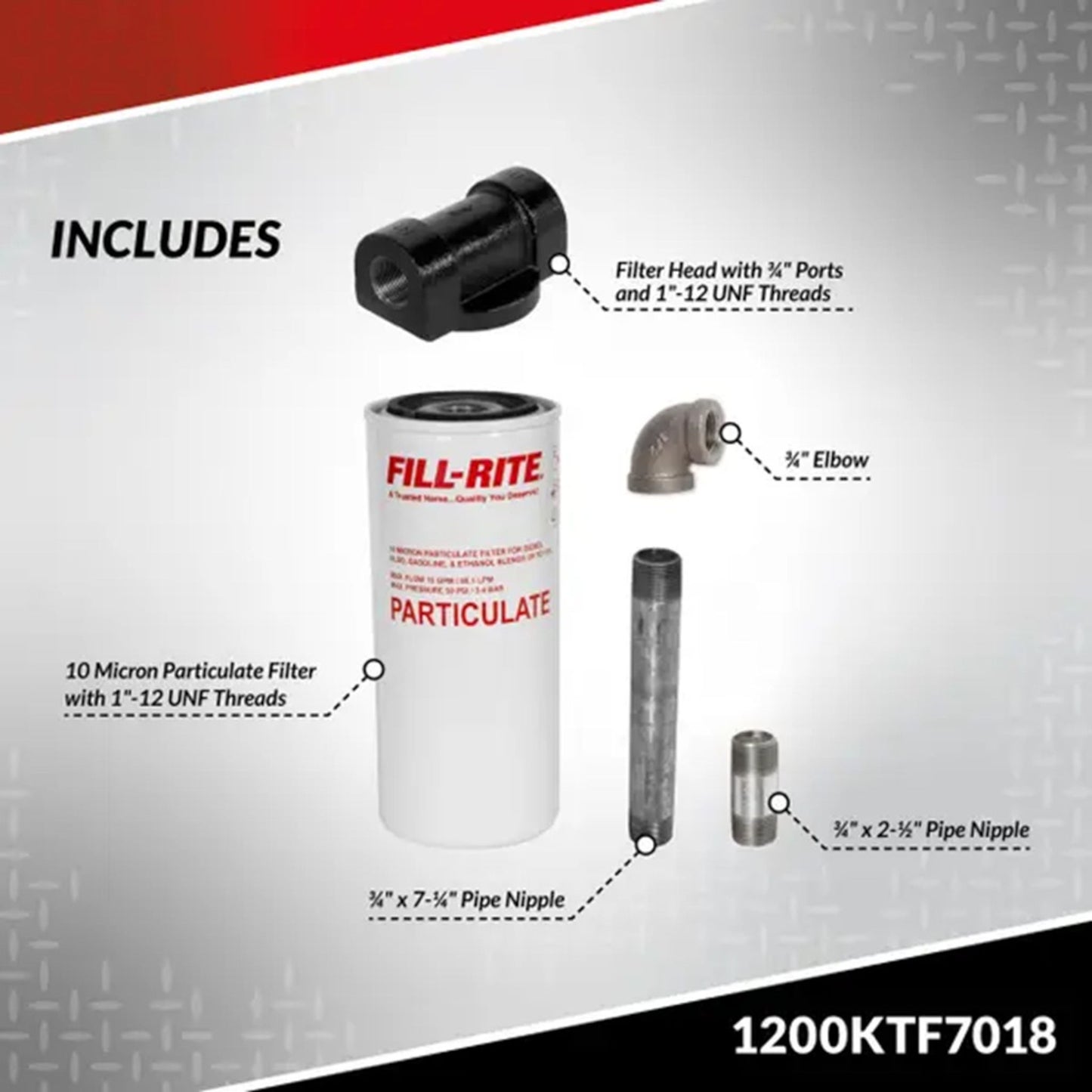

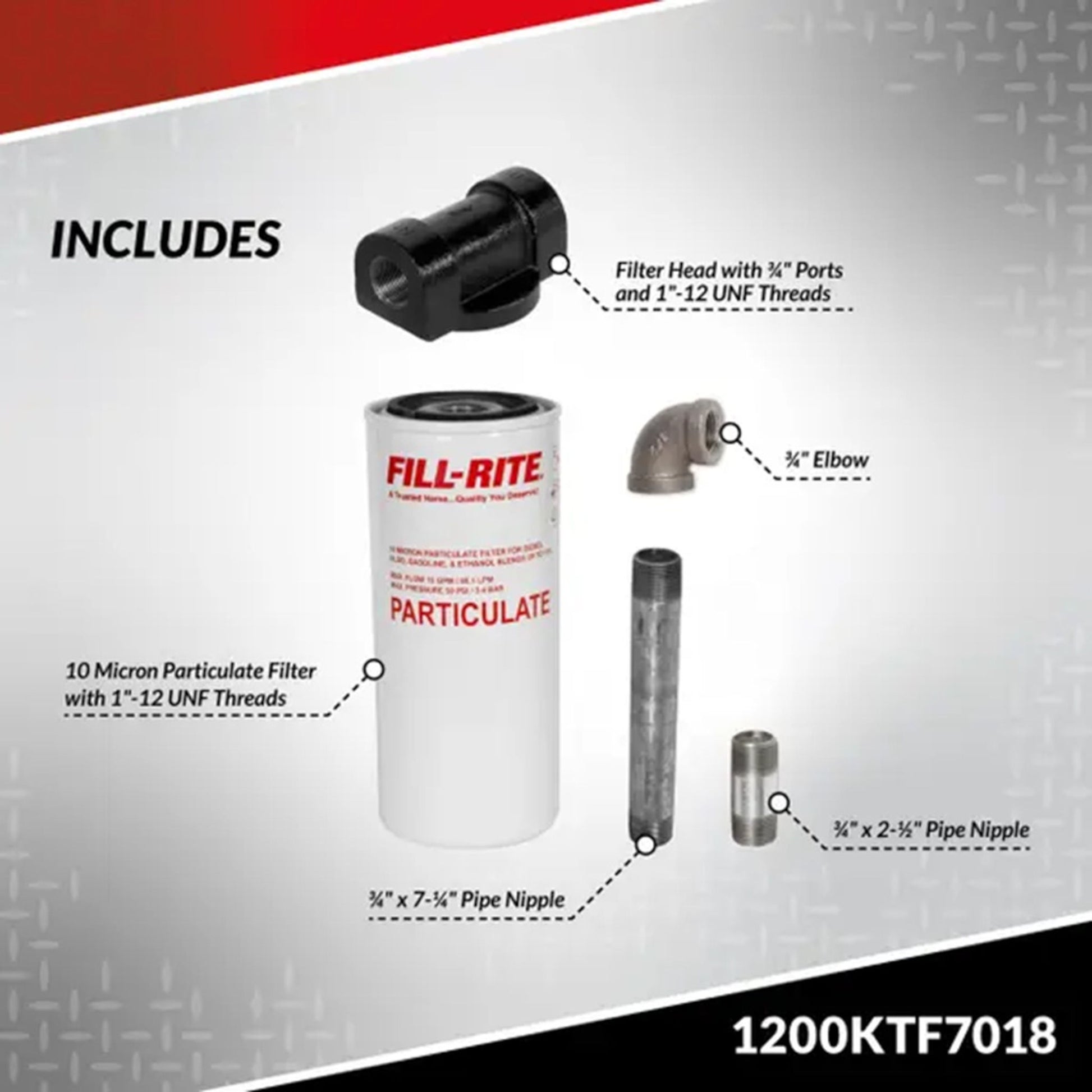

  • What's included in Fill-Rite 1200KTF7018 kit: filter head with 3/4" ports and 1"-12 UNF threads, 10 micron particulate filter, 3/4" elbow, 3/4" x 7-1/4" pipe nipple, and 3/4" x 2-1/2" pipe nipple

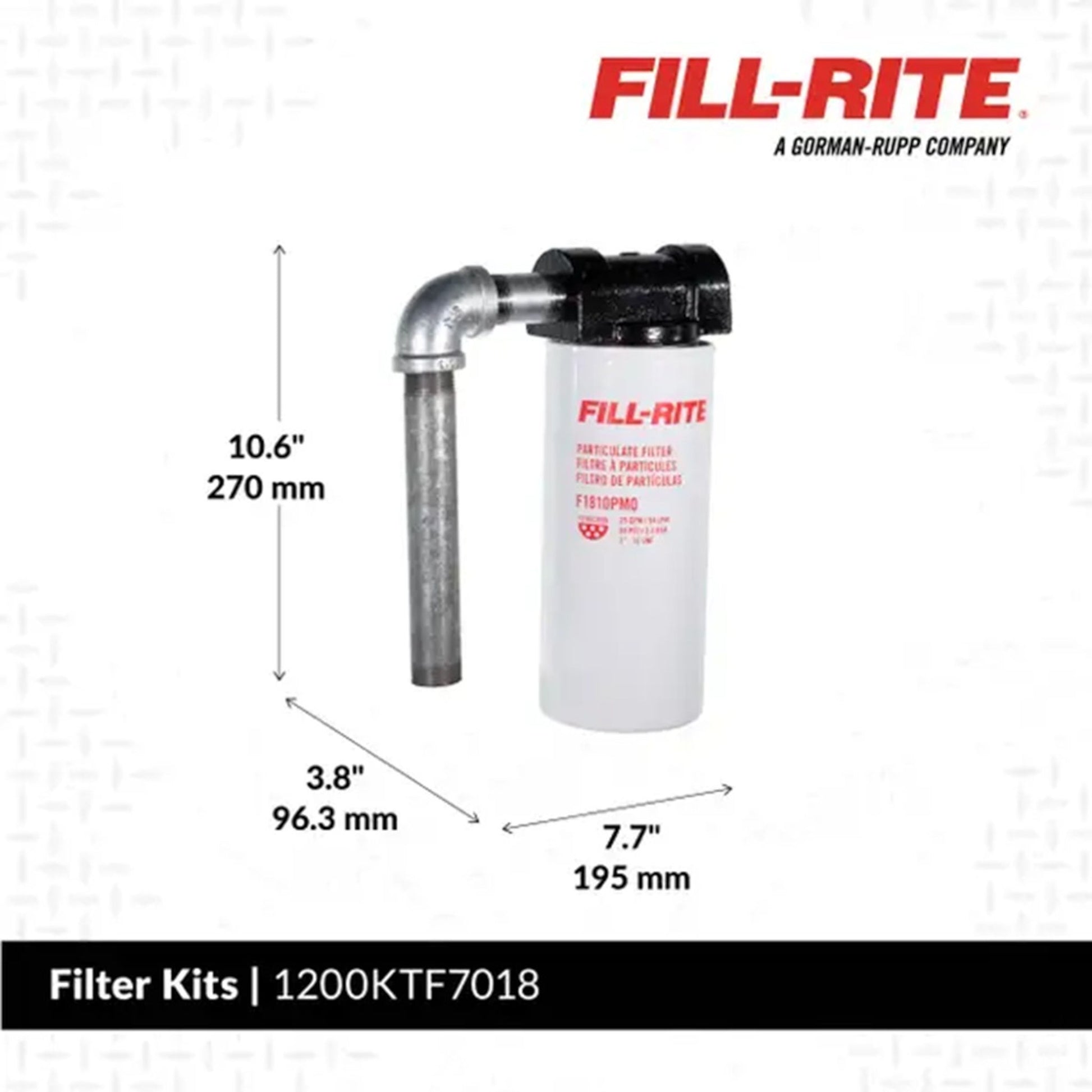

  • Fill-Rite 1200KTF7018 10 micron fuel filter kit dimensions: height 10.6 inches (270 mm), width 7.7 inches (195 mm), depth 3.8 inches (96.3 mm)

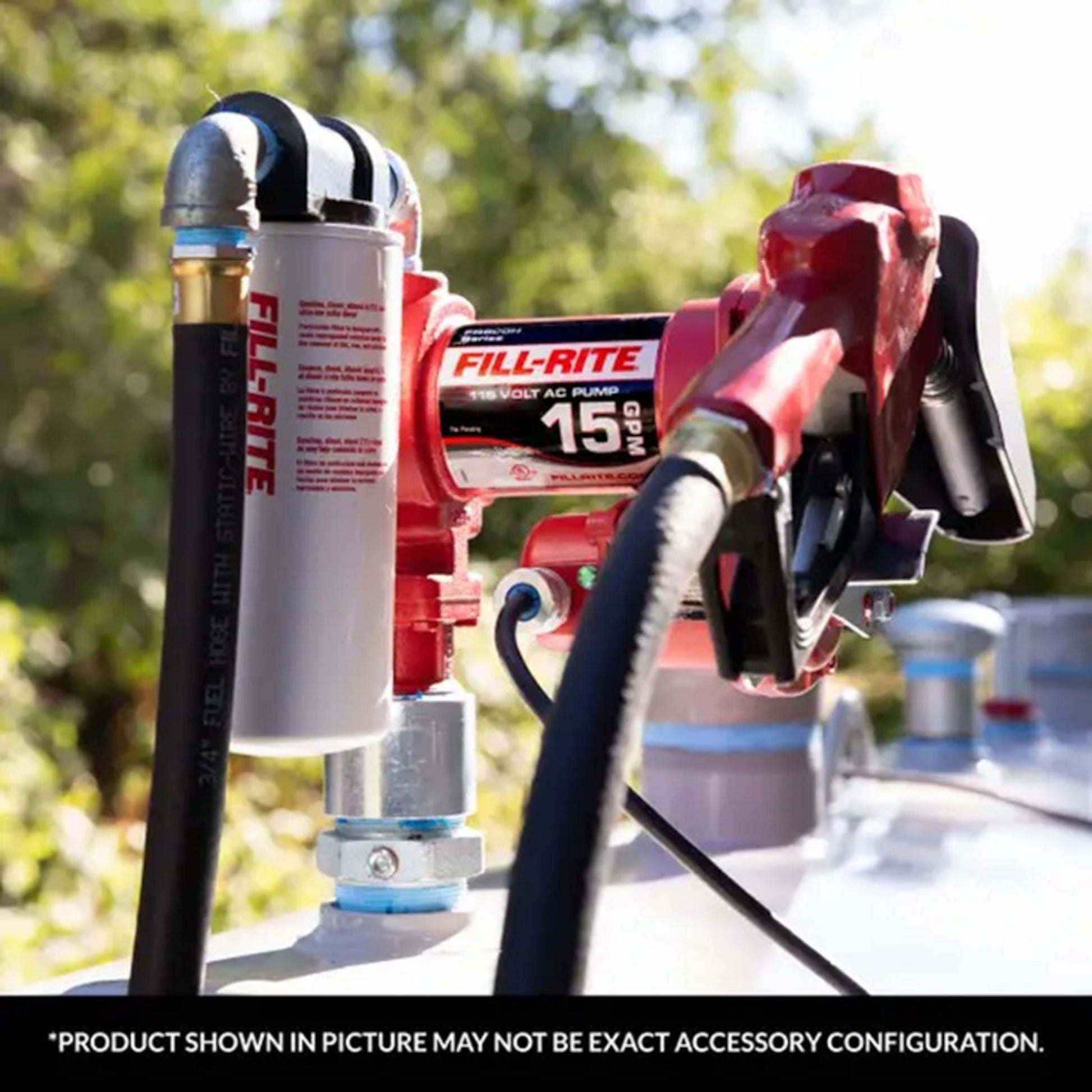

  • Fill-Rite 1200KTF7018 10 micron particulate filter kit mounted on fuel transfer pump with hose and nozzle in outdoor setting; note: product shown may vary in exact accessory configuration

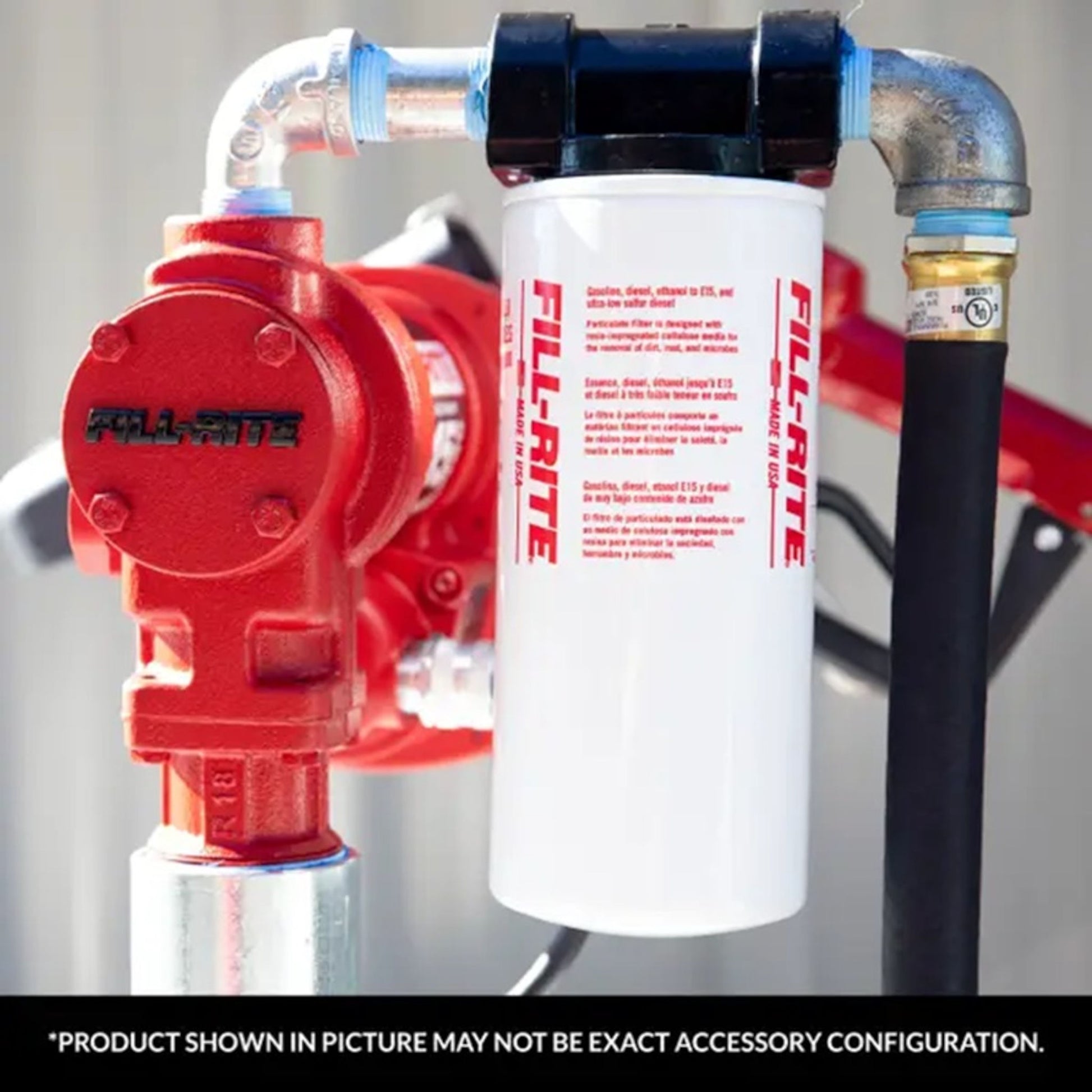

  • Close-up of Fill-Rite 1200KTF7018 10 micron fuel filter kit installed on red Fill-Rite transfer pump; designed for up to 25 GPM flow and 50 PSI max pressure; note: product shown may vary in exact accessory configuration
1 6

1200KTF7018

Fill-Rite Particulate Filter with ¾" Filter Head Kit

Fill-Rite Particulate Filter with ¾" Filter Head Kit

$59.99
$59.99
Sale Sold out

Features

Protects Equipment — protect your heavy equipment from contaminates that cause substantial damage and shorten life, such as dirt, rust, microbial growth, and water

Highest Risk — water contamination is the highest risk to your fuel source, finding its way in during delivery, from rain, humidity, condensation, leaks and numerous other methods

Replacement Interval — Fill-Rite recommends changing filters every six months to maintain the highest degrees of protection and performance

Water Detecting Filters — the best filtering solution for your application, water detecting filters capture particulates and detect excess water by causing flow restriction and indicating your attention is required

Particulate Filters — second only to water detecting filters in protection, particulate filters remove dirt, rust, and microbial growth contaminates from your fuel supply before they make their way into your equipment

Specs

Max Flowrate: 25 GPM / 94 LPM

Compatible Fluids: Diesel, Gasoline, B20, E15

Inlet Size / Connection / Thread: 0.75 " / -- / NPT

Filter: 10 Micron Particulate Filter and Filter Head

Filter Function: Particulate

Share

View full details

Product Description

For Use With 3/4" Pumps/Hoses



    Fill-Rite's fuel transfer filters are available in a wide range of options. Particulate filters remove contaminates in your fuel like dirt, silt, rust, and corrosion.

    The 1200KTF7018 is a complete fuel transfer filter kit that includes filter F1810PM0 and filter head 1200KTG9075. The filter strains particulates up to 10 micron and is designed for fuel transfer systems with flow rates up to 25 gallons per minute. The filter head is equipped with 0.75" fuel ports and 1"-12 UNF filter threads. This filter bundles also includes a 0.75" elbow, 0.75" X 7.25" pipe nipple, and a 0.75" X 2.5" pipe nipple.



You work through all kinds of conditions, so why shouldn’t your fuel transfer pump? For over 60 years, Fill-Rite has set the standard for reliable fuel transfer pumps, meters, and accessories. Our customers recognize Fill-Rite for its durability and years of elite performance in the field. Proudly made in the USA with global materials, Fill-Rite equipment is constructed with heavy-duty materials to withstand rugged everyday use, extreme weather exposure, and both on and off-road applications. Fill-Rite is supported by a wide network of distributors and retailers, ensuring you will always be able to find replacement parts and rebuild kits for your fuel transfer equipment.
