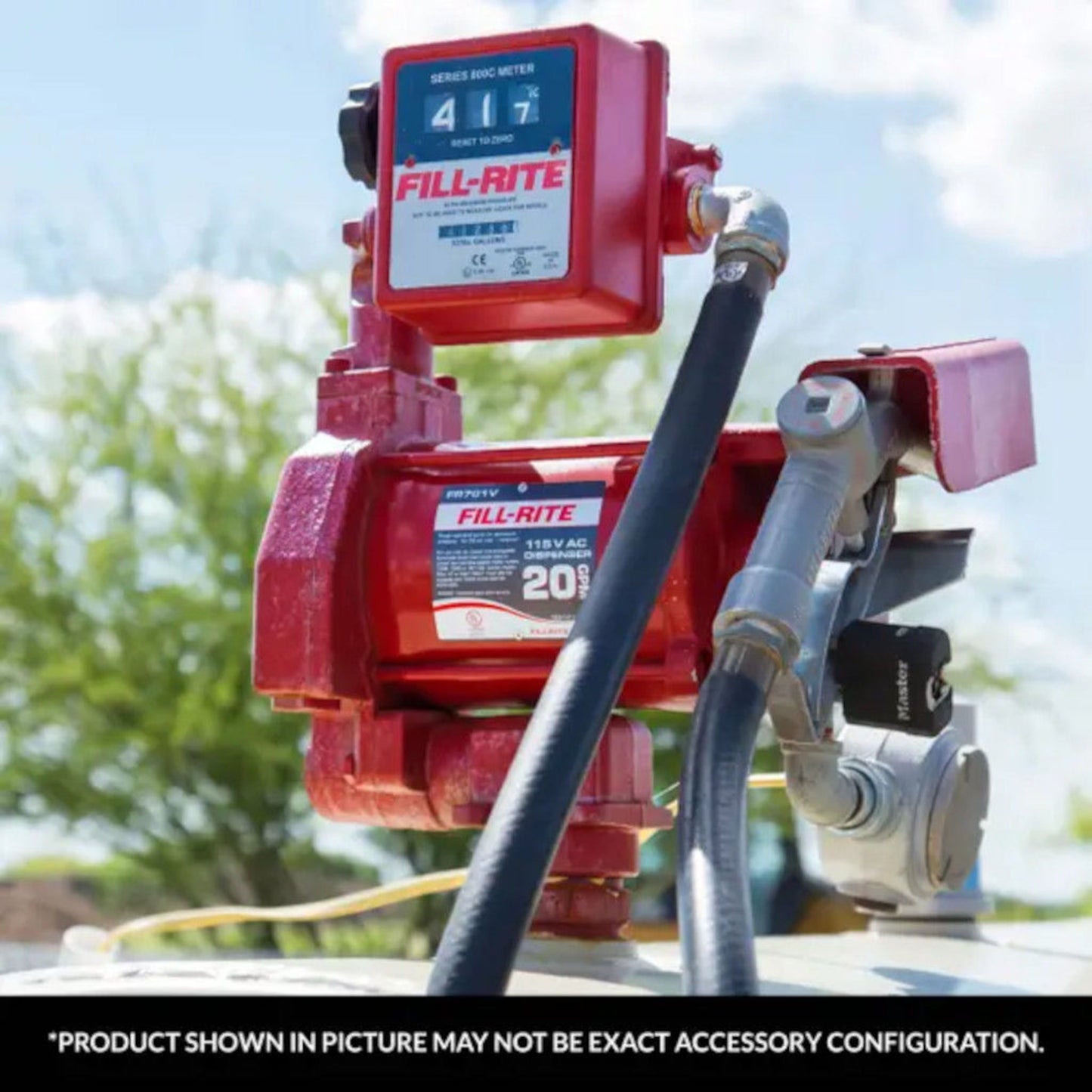

  • Close-up view of Fill-Rite 807CMK 3-digit mechanical fuel transfer meter in gallons during use on a fuel pump setup outdoors; note: product shown may vary in exact accessory configuration

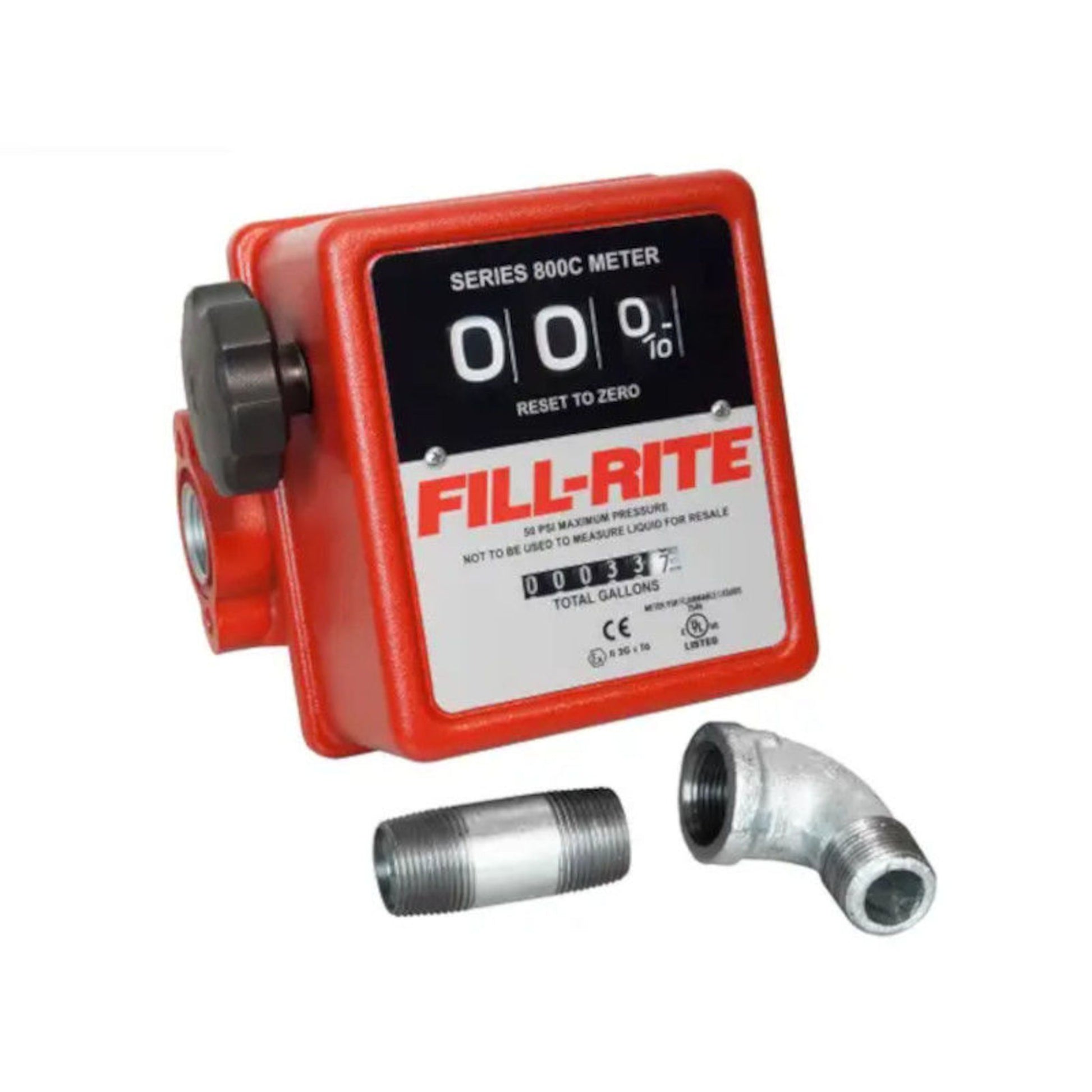

  • Fill-Rite 807CMK 5-20 GPM mechanical fuel meter shown with included pipe nipple and 90-degree elbow fittings for easy installation

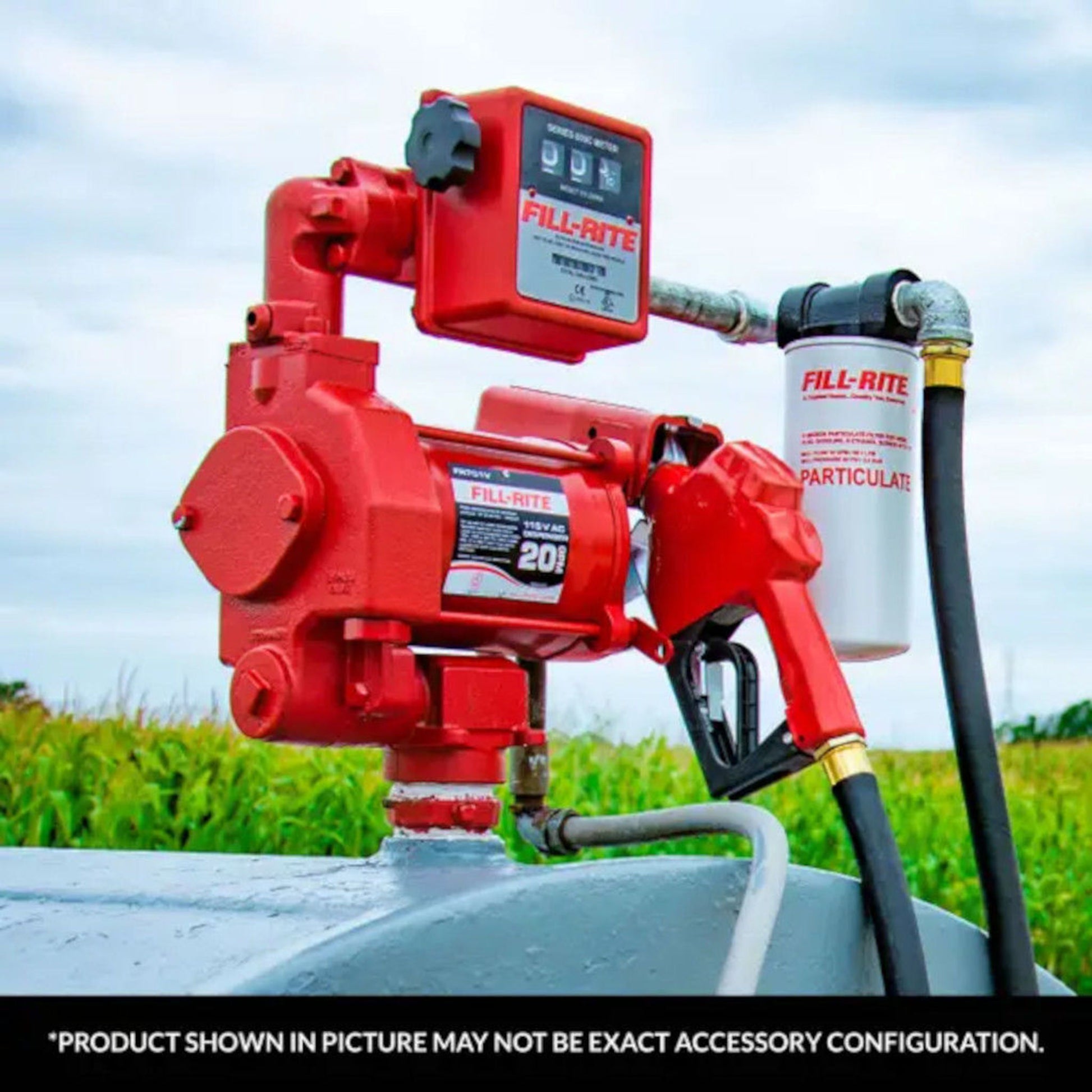

  • Fill-Rite 807CMK mechanical fuel meter mounted on fuel transfer pump with particulate filter and manual nozzle; note: product shown may vary in exact accessory configuration

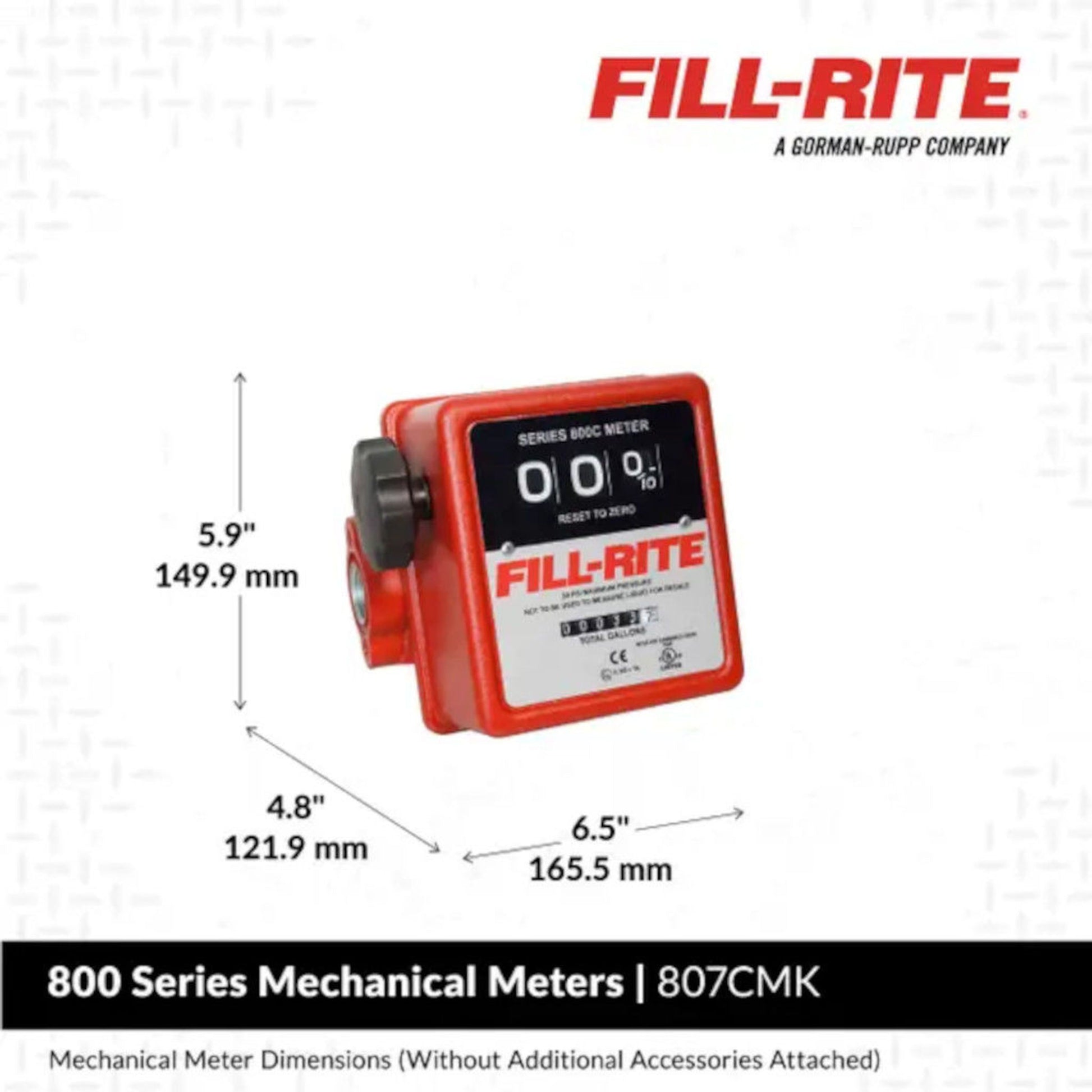

  • Fill-Rite 807CMK 3-digit mechanical fuel transfer meter dimensions (without accessories): height 5.9 inches, width 6.5 inches, depth 4.8 inches
  • Original retail box for Fill-Rite 807CMK 5-20 GPM 3-digit mechanical fuel transfer meter kit in gallons, with accuracy and flow rate details
1 5

807CMK

Fill-Rite 5-20 GPM 3-Digit Mechanical Fuel Transfer Meter - Gallons

Fill-Rite 5-20 GPM 3-Digit Mechanical Fuel Transfer Meter - Gallons

$274.99
$374.99 $274.99
Sale Sold out

Features

Versatile Technology — designed with nutating disc technology that is capable of moving rust and small debris that jam and cause damage to other meters

Cast-Aluminum Construction — built to last with rugged cast-aluminum construction, designed for maximum durability and lifetime corrosion resistance

Extreme Accuracy — measures fuel within +/- 1% accuracy, ensuring your record-keeping is precise as possible

Low-Volume Applications – 3-digit counter registers flow rates between 5-20 GPM and up to 99.9 gallons per batch, perfect for equipment with small fuel tanks

Lifetime Tracking — 5-digit non-resettable counter tracks total volume transferred over lifetime of meter

Fluid Compatibility — designed for daily use with diesel, gasoline, kerosene, mineral spirits, heptane, hexane

Specs

Flowrate Range (GPM): 5-20 GPM

Compatible Fluids: Diesel, Kerosene, Biodiesel up to B20, Gasoline up to E15, Mineral Spirits, Heptane, Hexane

Inlet Size / Connection / Thread: 0.75 " / Female / NPT

Outlet Size / Connection / Thread: 0.75 " / Female / NPT

Operating Temperature Range (°F): -15 - 150°F / -26 - 66°C

Max Operating Pressure (PSI): 50

Accuracy (+/- %): 1 %

Repeatability (+/- %): 0.38 %

Display Type: Mechanical

Display Digits: 3

Power Source: Mechanical

Share

View full details

Product Description

The 807CMK is a 3-digit mechanical fuel transfer meter. This meter is equipped with NPT threads and is designed to register 5-20 gallons per minute at +/- 1% accuracy. This model includes additional installation components.



Fill-Rite’s 800 Series of mechanical fuel transfer meters are ideal for low-volume applications, registering up to 99 gallons per batch



You work through all kinds of conditions, so why shouldn’t your fuel transfer pump? For over 60 years, Fill-Rite has set the standard for reliable fuel transfer pumps, meters, and accessories. Our customers recognize Fill-Rite for its durability and years of elite performance in the field. Proudly made in the USA with global materials, Fill-Rite equipment is constructed with heavy-duty materials to withstand rugged everyday use, extreme weather exposure, and both on and off-road applications. Fill-Rite is supported by a wide network of distributors and retailers, ensuring you will always be able to find replacement parts and rebuild kits for your fuel transfer equipment.
