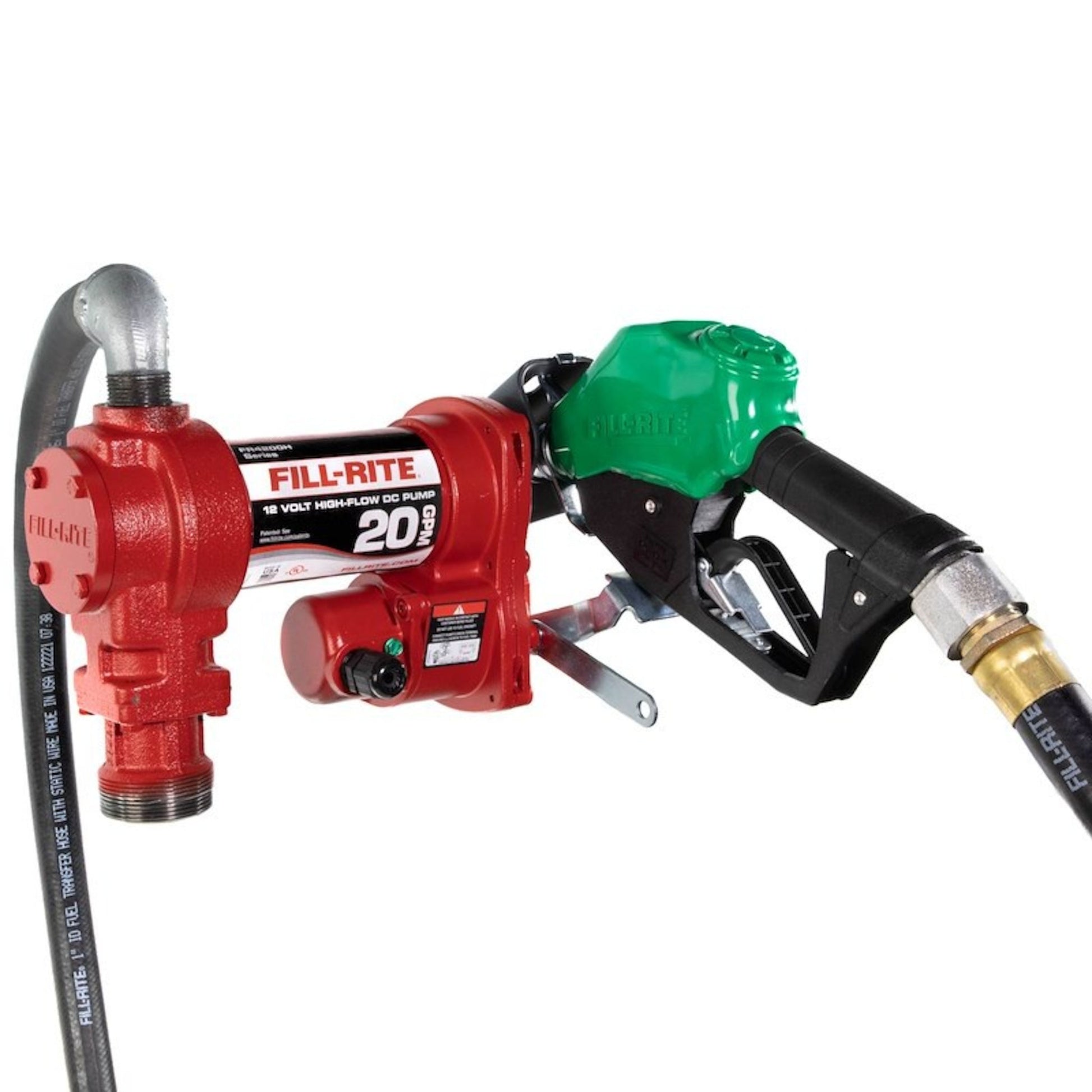

Fill-Rite 12V DC 20 GPM Fuel Transfer Pump with Automatic Diesel Nozzle

Cast-Iron Construction – heavy-duty, cast-iron construction provides unmatched durability, withstanding the harshest conditions out in the field or at the job site

Reliable Performance – Fill-Rite’s trusted rotary vane pump technology delivers 20 gallons per minute, perfect for filling equipment with fuel tanks from 20-80 gallons

Mobile Tanks – powered by a 12V motor and equipped with a 2 inch bung mount, this pump is ideal for wiring to 12 volt batteries and installing onto transfer tanks in truck beds

Fluid Compatibility – designed for daily use with gasoline, diesel, ethanol blends up to E15, biodiesel blends up B20, kerosene, and mineral spirits

Easy Installation – adjustable electrical junction box rotates 180° for easier wiring and more flexible installations in tight spaces

Long Life – thermally-protected motor prevents overheating, ensuring your pump performs for years worry free

Equipment Safeguard – built-in mesh strainer filters out particulates in your fuel, preventing damage to your equipment

Reliable On-Off Switch – on-off switch lever features a robust metal stopping arm, preventing premature failure from repeated use

Limited Lifetime Warranty — we stand behind our product with an industry-leading Limited Lifetime Warranty, protecting your investment

Max Flowrate:  20 GPM / 75 LPM

Power Type:  12V DC

Compatible Fluids:  Diesel, Kerosene, Biodiesel up to B20, Gasoline up to E15, Mineral Spirits

Inlet Size / Connection / Thread:  1 " / Female / NPT

Outlet Size / Connection / Thread:  1 " / Female / NPT

Mounting Size / Thread / Type:  2" / NPT / Bung Mount

Duty Cycle (min):  30 min on / 30 min off

Power Source:  Electrical

Motor Power (HP):  0.25

Max Current (A):  19 A

Thermal Protection Switch:  Yes

Self Priming:  Yes

Suction Lift (ft.):  8 '

Dry Vacuum (in. Hg):  5

Operating Temperature Range (°F):  --

Discharge Head (ft):  37 '

Strainer Mesh Size (Micron):  20x20

Max Operating Pressure (PSI):  16

Viscosity Range (cSt):  1 to 4
