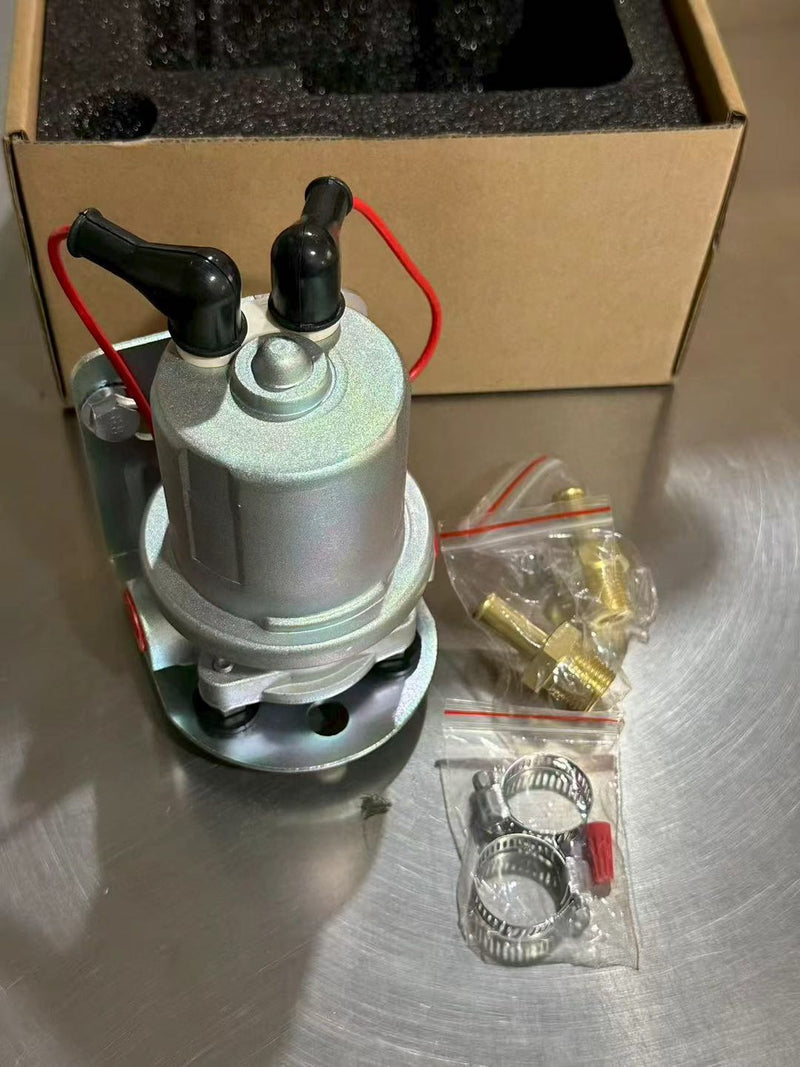

Flowtek inline fuel pump with port fittings

Flowtek12V in-line fuel pump installed under vehicle: mounted with bracket, connected to fuel line and wiring for efficient auxiliary tank transfer.

Flowtek inline fuel pump wire connectors

FT-4070P

FlowTek 12V DC 80 GPH Inline Fuel Pump

✓ 80 GPH Flow Rate

✓ Gasoline and Diesel Rated

✓ Upgraded 3/8 in. Ports

✓ Self-Priming

✓ 3-Year Limited Warranty

Backed by FlowTek 3-Year Limited Warranty

$129.99

4 interest-free payments available with Shop Pay

⏱

Order by 11am CST — ships same day

Backed by Warranty

Manufacturer-backed coverage

Lowest Price Guaranteed

We'll match any price

Authorized Dealer

Full warranty support

Description

The FlowTek FT-4070P is a 12-volt inline fuel pump rated for both gasoline and diesel, built for powered auxiliary fuel transfer on trucks, service rigs, and farm equipment. The rotary positive displacement design moves fuel at a steady rate from an auxiliary tank to the factory tank, without the pulsing that shows up in lower-grade inline pumps.

Flow rate comes down to what a pump can pull through it. Most inline replacement pumps run a 1/4 in. port, which limits volume no matter how the motor is rated. The FT-4070P uses full 3/8 in. NPT inlet and outlet ports, and that larger opening is what holds 80 GPH at 3 to 5 PSI on a 6-amp draw. The pump is self-priming with up to 10 ft. of suction lift, so it pulls fuel from a tank mounted below it and starts on its own.

Four hose fittings ship in the box, two 5/16 in. and two 3/8 in., so the pump connects to the line you're already running. Viton (FKM) seals handle gasoline, diesel, ethanol blends, and kerosene. Wiring has crimped connections and weatherproof connector covers, and vibration dampeners isolate the pump from road shock and chassis vibration.

Rated for gasoline, diesel, E10, E15, and kerosene. Backed by a 3-year limited warranty.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

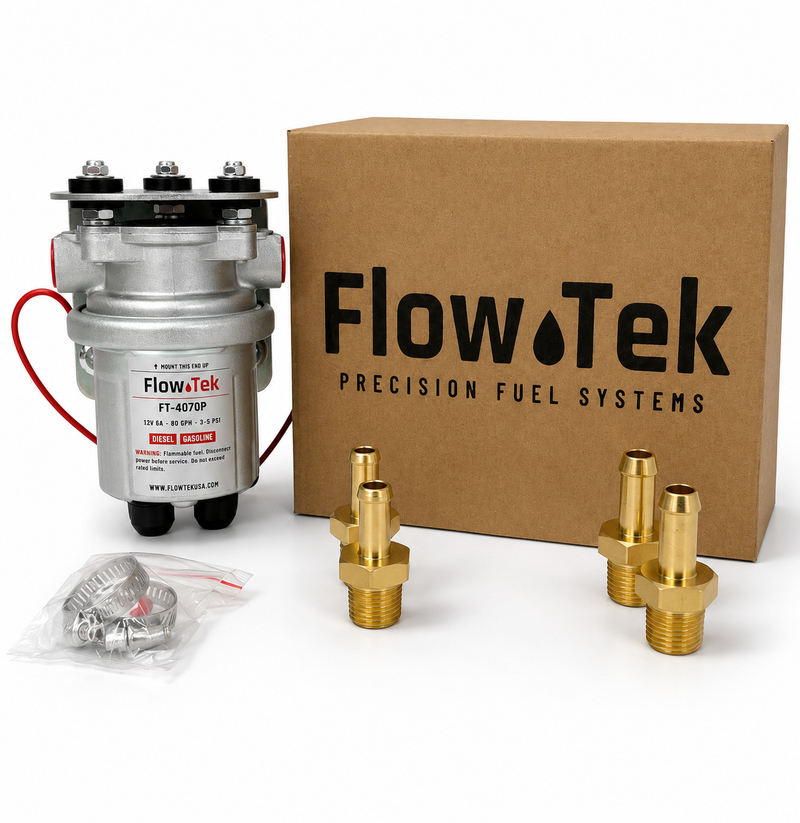

What's in the Box

✓

Inline Fuel Pump

✓

Mounting Bracket

✓

Vibration Dampeners

✓

Hose Fittings 5/16 in. (2)

✓

Hose Fittings 3/8 in. (2)

✓

Weatherproof Wire Connector Covers

Features +

Multi-Fuel Capability: Rated for gasoline and diesel, including E10, E15, and kerosene

Upgraded Port Size: Full 3/8 in. NPT inlet and outlet flow more volume than the 1/4 in. standard

High Flow Rate: Moves 80 GPH at 3 to 5 PSI for fast auxiliary transfer

Self-Priming Operation: Pulls fuel and starts on its own without manual priming

10 ft. Suction Lift: Draws from a tank mounted below the pump for flexible placement

Low Current Draw: 6 amps at 12 volts runs off a standard switched circuit

Steady Flow Design: Rotary positive displacement delivers consistent flow without pulsing

Flow Control: Integrated check valve stops transfer when the pump is switched off

Fuel-Resistant Seals: Viton (FKM) construction resists swelling from ethanol blends and gasoline

Two Hose Sizes: Four fittings included, two 5/16 in. and two 3/8 in., no adapters needed

Sealed Wiring: Wiring is crimped with sealed connections

Weatherproof Connections: Connector covers seal the wiring against rain, road spray, and dust

Vibration Isolation: Dampeners mount between the pump and bracket to absorb road shock

Directional Mounting: Marked orientation makes correct installation straightforward

Extended Warranty Coverage: Backed by FlowTek's 3-year limited warranty, three times the standard on inline pumps

Specs +

Item Number: FT-4070P

Brand: FlowTek

Pump Type: Rotary Positive Displacement

Max Flowrate: 80 GPH

Max Operating Pressure: 3–5 PSI

Power Type: 12V DC

Max Current: 6 A

Self Priming: Yes

Suction Lift: 10 ft.

Inlet Port: 3/8 in. NPT

Outlet Port: 3/8 in. NPT

Included Hose Fittings: 5/16 in. (2), 3/8 in. (2)

Seal Material: Viton (FKM)

Check Valve: Integrated

Mounting Type: Bracket with vibration dampeners

Mounting Orientation: Directional, labeled end up

Compatible Fluids: Gasoline, Diesel, E10, E15, Kerosene

Manufacturer's Warranty: 3-Year Limited

Common Applications +

Powered auxiliary fuel transfer for pickup trucks and service rigs
Gasoline auxiliary tank systems with cab-mounted switch control
Farm and ranch equipment refueling from a bed-mounted tank
Hotshot and long-haul range extension
Fleet and service truck fuel systems
Replacement for a worn or failed 12V inline transfer pump

Frequently Asked Questions +

Q: Can this pump be used with both gasoline and diesel?

A: Yes. The pump is rated for gasoline and diesel, along with E10, E15, and kerosene. Viton seals handle all of them.

Q: What size are the inlet and outlet ports?

A: Both are 3/8 in. NPT, larger than the 1/4 in. ports common on standard inline pumps. The larger port size is what supports the full 80 GPH flow rate.

Q: What size fuel hose do I need?

A: The pump includes four hose fittings, two 5/16 in. and two 3/8 in., so it connects to either size line without additional adapters.

Q: How much current does it draw?

A: 6 amps at 12 volts, which runs off a standard switched 12V circuit.

Q: Does the pump have to be mounted a certain way?

A: Yes. The pump body is marked with the correct orientation. Install it with the labeled end facing up so the internals stay primed and the check valve seats properly.

Q: What is the warranty?

A: This pump carries FlowTek's 3-year limited warranty.
