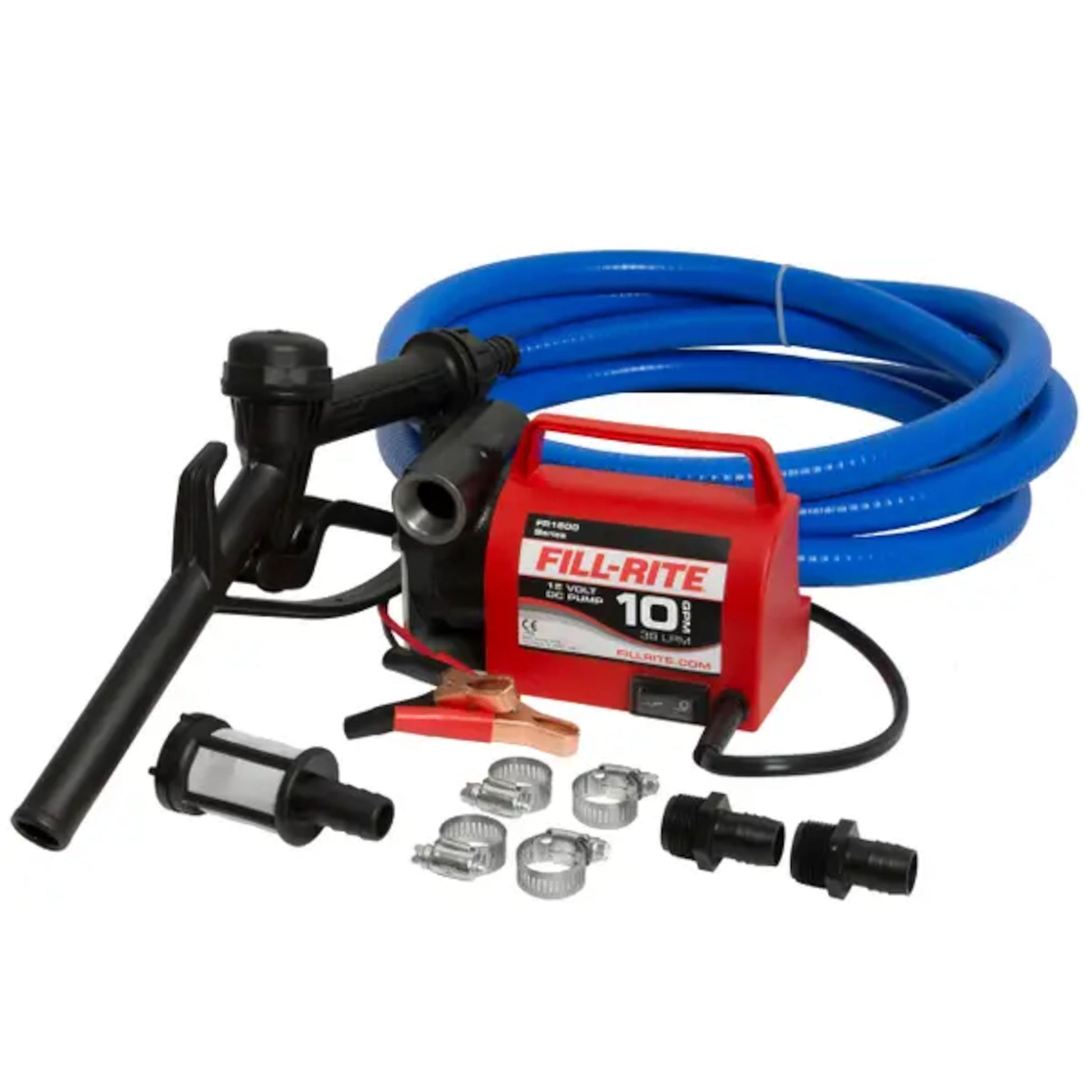

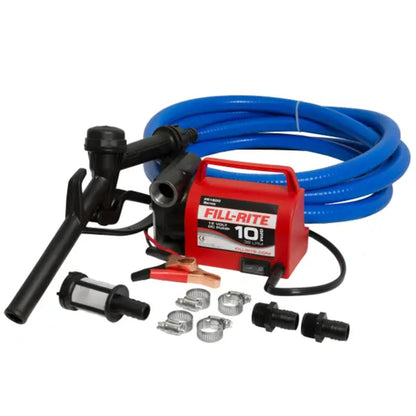

Fill-Rite 12 volt DC portable diesel fuel transfer pump kit with hoses, manual nozzle, clamps, and fittings displayed

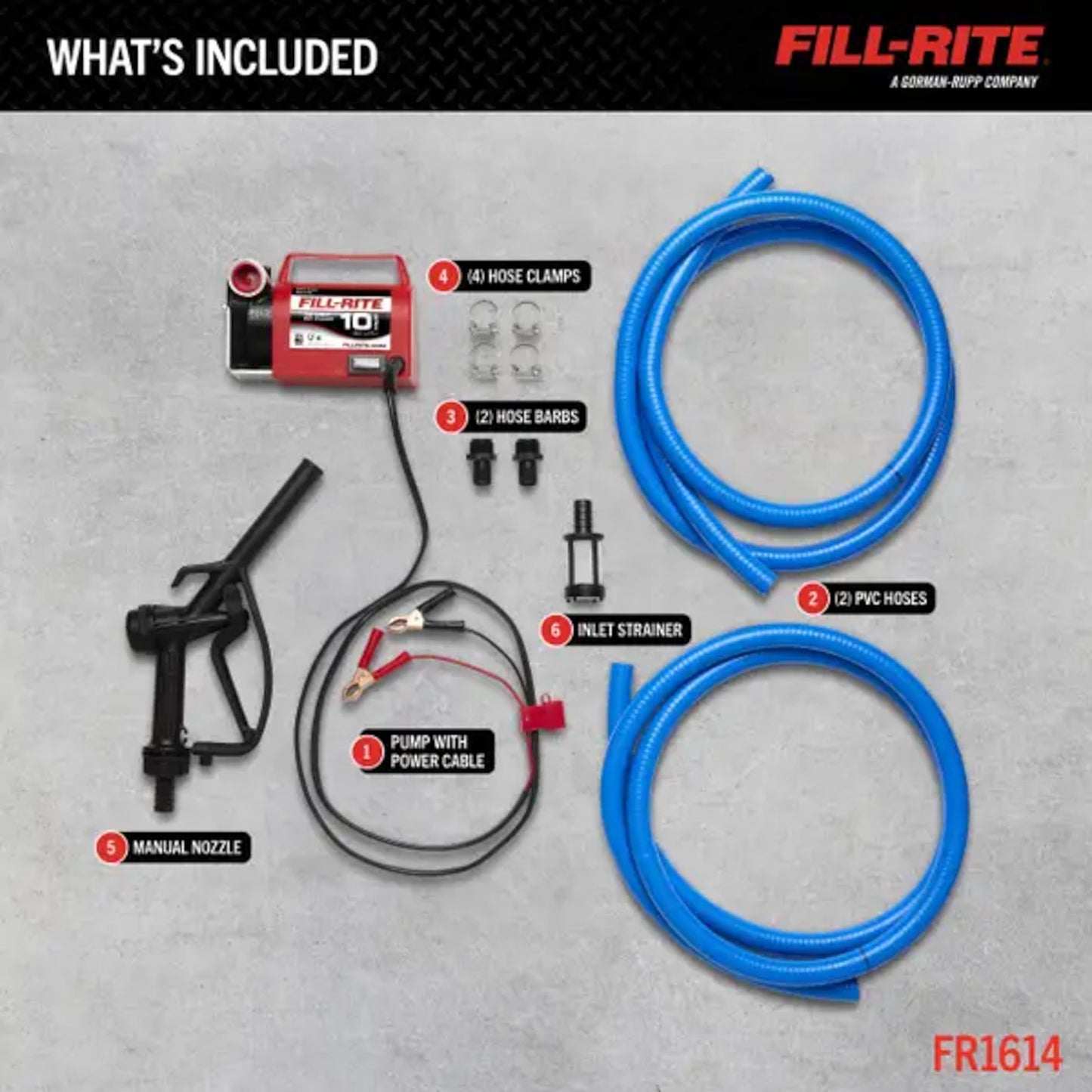

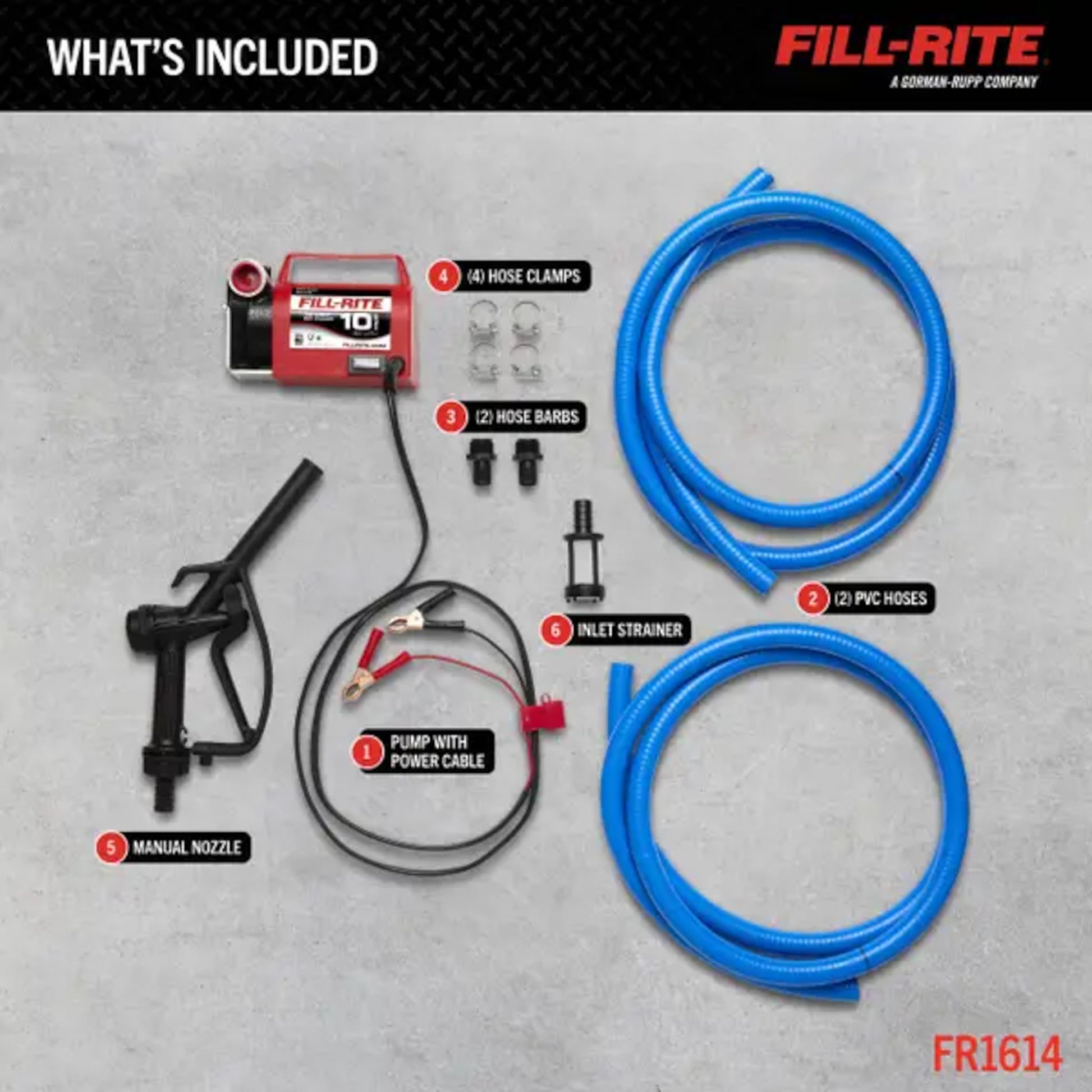

Fill-Rite FR1614 diesel fuel transfer pump components laid out showing pump, hoses, manual nozzle, clamps, adapters, and inlet strainer

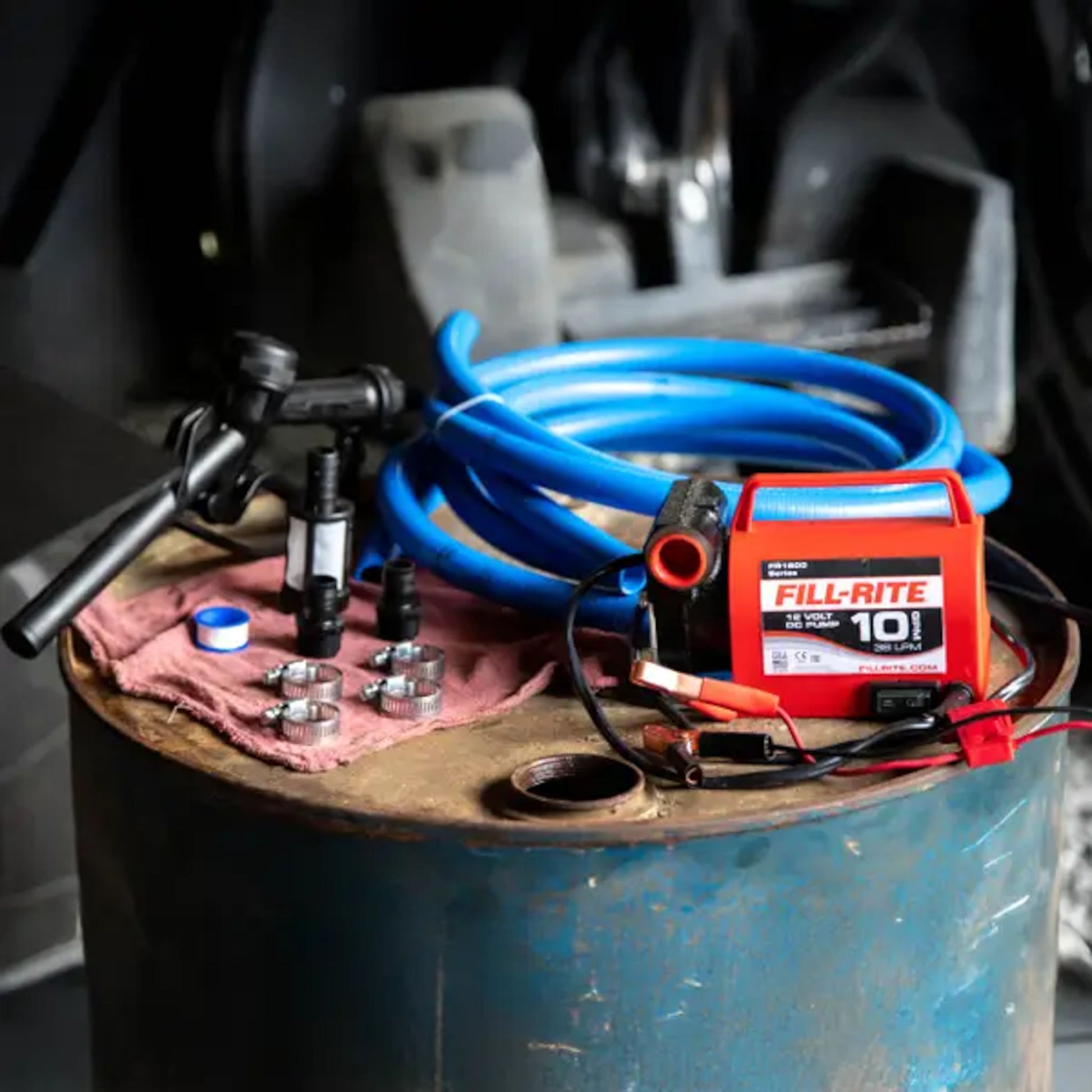

Fill-Rite portable diesel fuel transfer pump set up on a drum with hoses, nozzle, and fittings ready for use

FR1614

Fill-Rite 12V DC 10 GPM Portable Diesel Fuel Transfer Pump – Manual Nozzle

✓ 10 GPM Flow Rate

✓ 12V DC Powered

✓ Complete Ready-To-Pump Bundle

✓ Heavy-Duty Construction

✓ Made In The USA

Backed by Fill-Rite 1 Year Limited

$249.99

$289.99

4 interest-free payments available with Shop Pay

Need portable 12V power?

PowerMate DeWalt 20V to 12V Battery Adapter – Portable Power Supply

+ $109.99

Add to your order

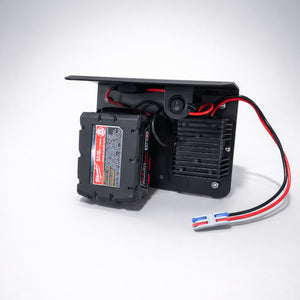

PowerMate Milwaukee M18 to 12V Battery Adapter – Portable Power Supply

+ $109.99

⏱

Order by 11am CST — ships same day

Backed by Warranty

Manufacturer-backed coverage

Made in USA

American manufacturer

Lowest Price Guaranteed

We'll match any price

Authorized Dealer

Full warranty support

Description

The Fill-Rite FR1614 is a portable 12V DC fuel transfer pump that delivers up to 10 gallons per minute, built for transferring diesel out of drums, totes, and transfer tanks into equipment in the field. Heavy-duty cast-iron construction and rotary vane technology — proven over 60 years of Fill-Rite pumps — make it a dependable workhorse for farms, jobsites, and service trucks.

This is a complete ready-to-pump bundle. The battery cable and clips come pre-installed from the factory, and the package includes a 3/4" x 8' suction hose, a 3/4" x 8' discharge hose, a manual nozzle, and a barbed strainer. Clip onto a 12V power source, drop the suction hose in, and start pumping. A simple toggle switch handles on/off control, and a thermal protection switch guards the motor.

The pump itself weighs under 8 pounds with a carry handle, making it easy to move between tanks, drums, and equipment or hold during operation. It's self-priming with an 8-foot suction lift, and the 17-amp max draw means it also runs off the PowerMate 12V Converter for fully portable battery-powered fuel transfer.

Compatible with diesel, kerosene, antifreeze, and other approved non-flammable liquids. Made in the USA. Backed by Fill-Rite's 1-year warranty.

✓

Quality Assurance

Each pump is factory assembled and tested for reliable flow before leaving the warehouse.

What's in the Box

✓

12V DC Fuel Transfer Pump

✓

3/4" x 8' PVC Suction Hose with Hose Barbs

✓

3/4" x 8' PVC Discharge Hose with Hose Barbs

✓

3/4" PVC Manual Nozzle

✓

Barbed Strainer

✓

Pre-Installed 6.5' Battery Cable with Clips

Features +

High Flow Performance: Delivers up to 10 gallons per minute for efficient diesel transfer

Cast-Iron Construction: Heavy-duty housing withstands daily use and harsh field conditions

Rotary Vane Technology: Proven for over 60 years, produces consistent flow over the life of the pump

Complete Bundle: Ships with suction hose, discharge hose, manual nozzle, and strainer — ready to pump out of the box

Ready Out of Box: Battery cable and clips come pre-installed from the factory

Portable Design: Pump weighs under 8 pounds with a carry handle for easy transport between tanks and equipment

Self-Priming: Primes itself with an 8-foot suction lift for drum and tote transfer

Thermal Protection Switch: Guards the motor against overheating

Simple Toggle Switch: Quick, reliable on/off control at the pump

PowerMate Compatible: 17A max draw runs off the PowerMate 12V Converter for battery-powered portable transfer

Multi-Fluid Capability: Handles diesel, kerosene, and antifreeze

Made In The USA: Built by Fill-Rite with heavy-duty materials for rugged everyday use

1-Year Warranty: Backed by Fill-Rite's manufacturer warranty

Specs +

Item Number: FR1614

Brand: Fill-Rite

Max Flowrate: 10 GPM / 38 LPM

Power Type: 12V DC

Power Versatility: Compatible with the PowerMate 12V Converter for portable battery-powered operation

Compatible Fluids: Diesel, Kerosene, Antifreeze

Inlet Size / Connection / Thread: 3/4" / Female / NPT

Outlet Size / Connection / Thread: 3/4" / Female / NPT

Mounting Type: Portable Carry Handle

Duty Cycle: 30 Minutes On / 30 Minutes Off

Motor Power: 0.2 HP

Max Current: 17 A

Thermal Protection Switch: Yes

Self Priming: Yes

Suction Lift: 8 ft

Dry Vacuum: 5 in. Hg

Discharge Head: 36 ft

Max Operating Pressure: 50 PSI

Power Cord: 6.5 ft, 12 AWG with Battery Clips

Assembled Product Weight: 11.1 lbs

Country of Origin: USA

Warranty: 1 Year

Common Applications +

Portable diesel transfer from drums, totes, and transfer tanks
Refueling equipment and machinery on jobsites
Agricultural equipment refueling in the field
Mobile fueling setups for service trucks
Backup fueling for generators and remote equipment
Battery-powered transfer when paired with a PowerMate 12V Converter

Frequently Asked Questions +

Q: What is this pump designed for?

A: Portable diesel fuel transfer — moving fuel from drums, totes, and transfer tanks into equipment in mobile and jobsite applications.

Q: What fluids can this pump handle?

A: Diesel, kerosene, and antifreeze.

Q: What comes included with the pump?

A: Everything you need to start pumping: a 3/4" x 8' suction hose, a 3/4" x 8' discharge hose, a manual nozzle, a barbed strainer, and a pre-installed 6.5' battery cable with clips.

Q: Can I run this pump off a PowerMate 12V Converter?

A: Yes. The pump draws a maximum of 17 amps, within the PowerMate's 20-amp continuous rating, so you can power it from a DeWalt or Milwaukee battery anywhere — no vehicle needed for power.

Q: Is this pump self-priming?

A: Yes. It self-primes with a suction lift of up to 8 feet, making it well suited for pulling from drums and totes.

Q: What is the duty cycle of this pump?

A: It's rated for 30 minutes on / 30 minutes off for reliable long-term performance.

Q: Is this pump portable?

A: Yes. The pump weighs under 8 pounds with a built-in carry handle, so it moves easily between tanks and can be held during operation.

Q: What is the warranty on this pump?

A: It's backed by Fill-Rite's 1-year warranty. Register your pump at fillrite.com to keep your proof of purchase on file.
