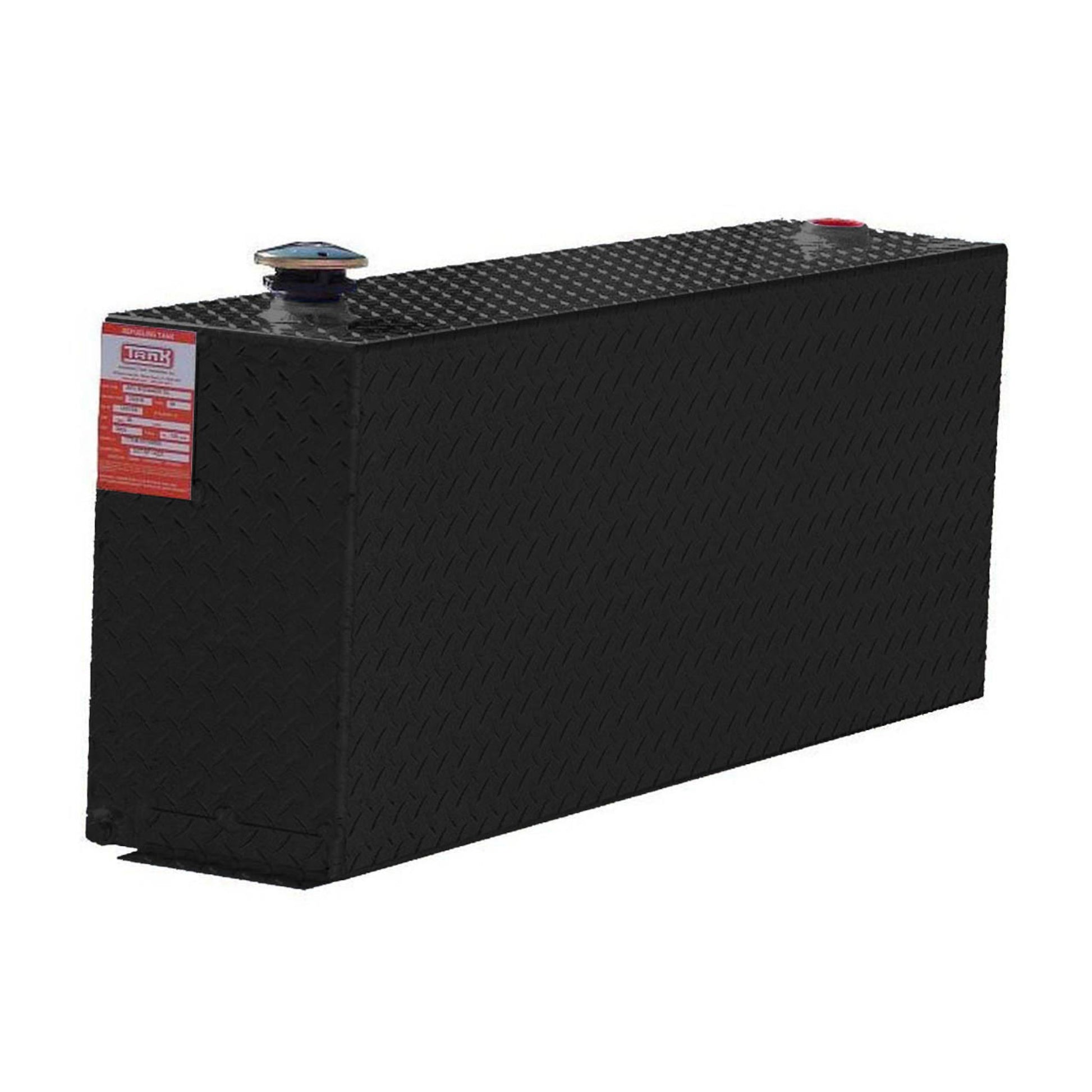

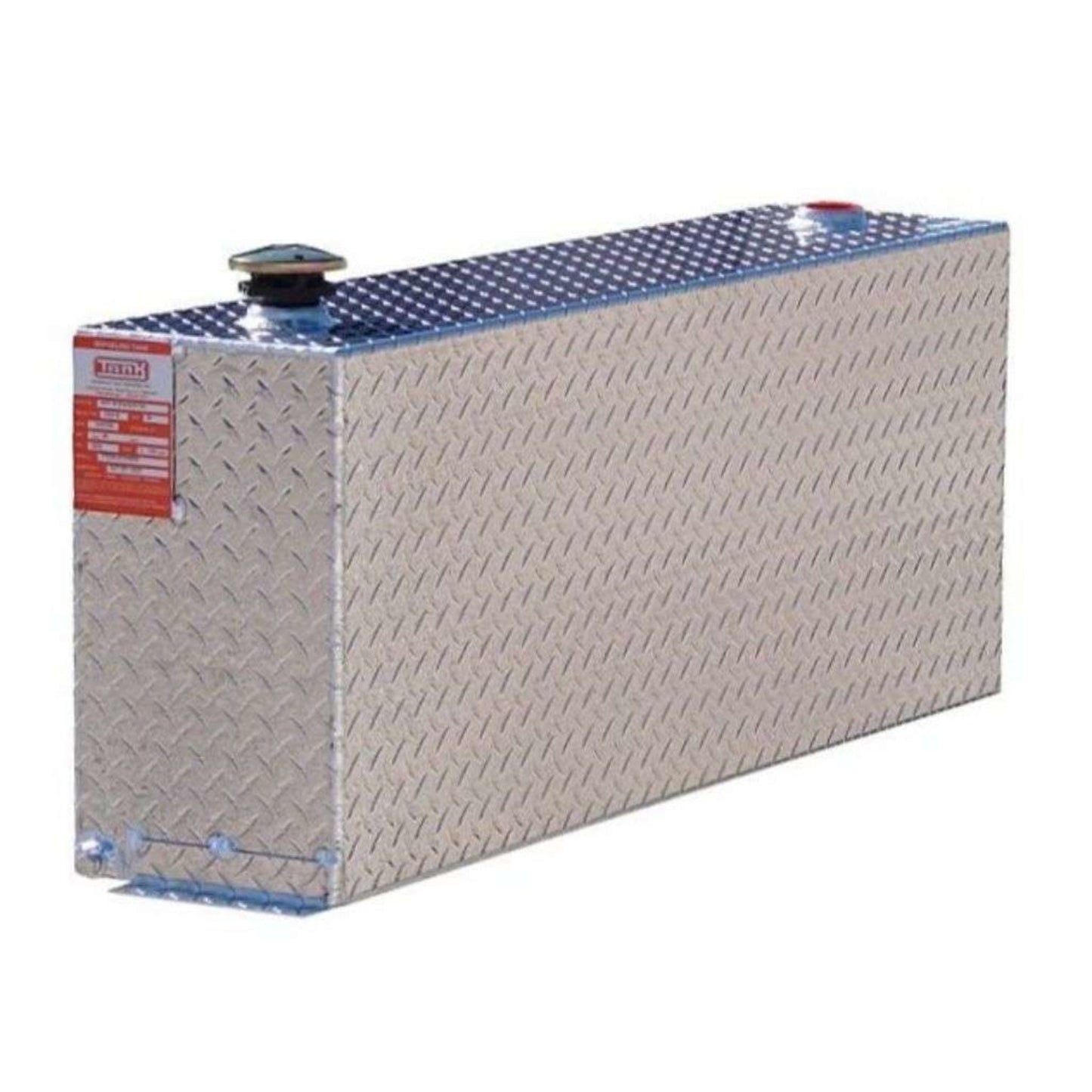

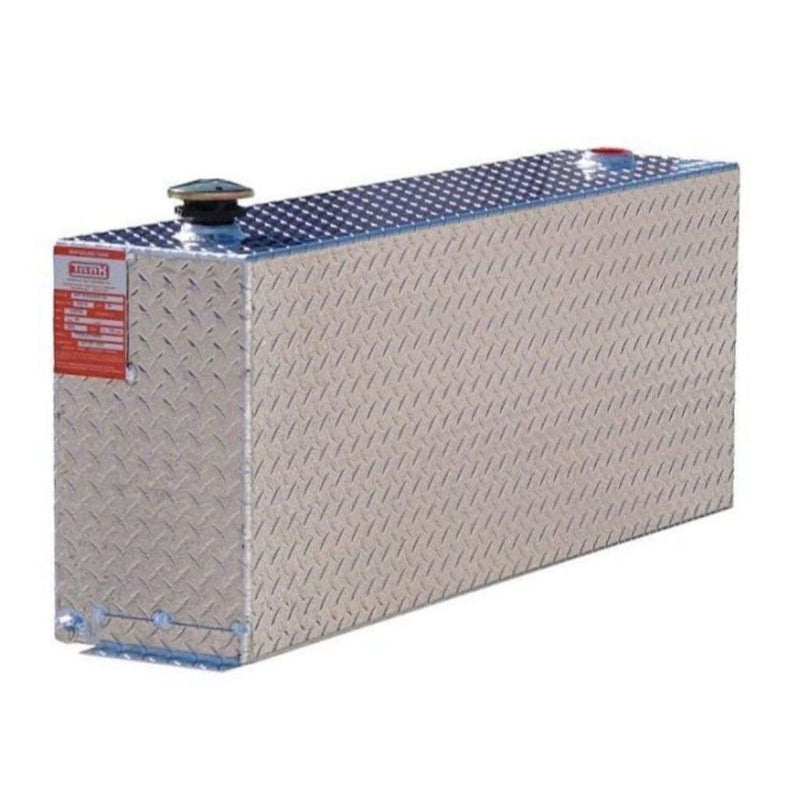

ATI 38 Gallon Aluminum Transfer Fuel Tank

Commercial-Grade Aluminum Construction: Built from premium aluminum for durability, corrosion resistance, and long service life.

Rectangular Tank Design: Most popular ATI configuration offering efficient use of truck bed space.

Reversible Installation: Dual 2-inch NPT bungs allow the fill cap and pump to be mounted on either side.

DOT Special Permit Approved: Authorized by the U.S. Department of Transportation for legal highway transport.

Multi-Fuel Compatibility: Approved for gasoline, diesel, kerosene, aviation fuel, methanol, and other approved liquids.

Fully Baffled Interior: Reduces fuel slosh and movement during transportation.

Lockable Vented Filler Cap: Commercial-grade cap provides secure storage and proper venting.

Reinforced Bung Design: Two reinforced 2-inch NPT bungs deliver superior mounting strength.

Integrated Drain Port: 3/8-inch NPT drain allows for maintenance and servicing.

Quality-Control Tested: Pressure tested, leak tested, and cleaned inside and out prior to shipment.

Made in the USA: Manufactured domestically using premium materials and fittings.

SKU: TTR38

Capacity: 38 Gallons

Material: Aluminum

Tank Style: Rectangular Transfer / Refueling Tank

Fuel Compatibility: Gasoline, Diesel, Kerosene, Aviation Fuel, Methanol (approved liquids)

DOT Approval: U.S. DOT Special Permit

Fill / Pump Ports: Two 2-Inch NPT Reinforced Bungs

Drain Port: 3/8-Inch NPT

Internal Baffling: Yes

Filler Cap: Lockable, Vented

Mounting Hardware: Hold-Down Brackets Included

Testing: Pressure and Leak Tested

Warranty: 1 Year Limited Warranty

Country of Manufacture: USA

Fuel transfer for equipment and machinery on job sites

Service trucks and contractor vehicles requiring on-demand refueling

Agricultural fuel transport and field operations

Fleet maintenance and mobile fueling setups

Backup fuel storage for generators and remote equipment
