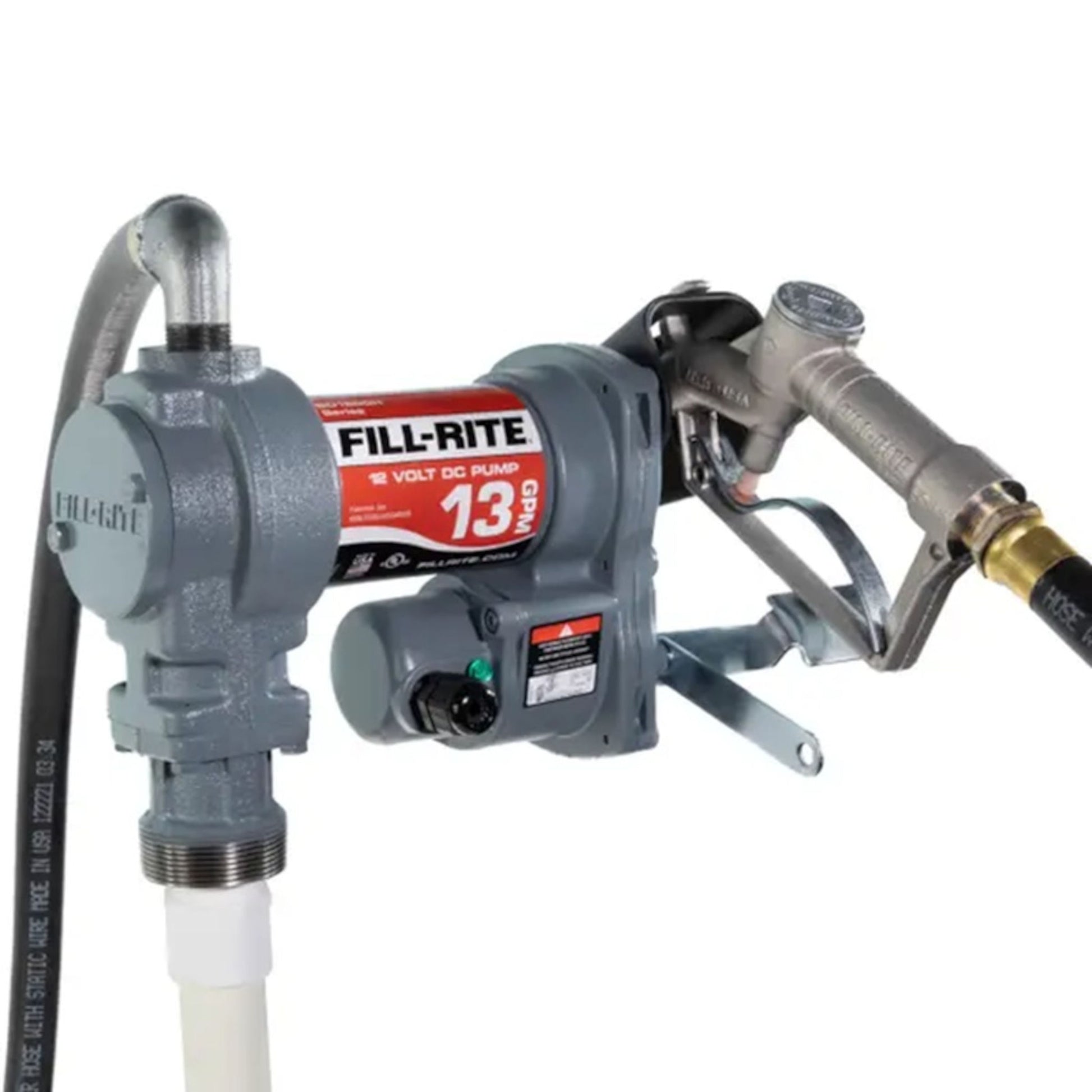

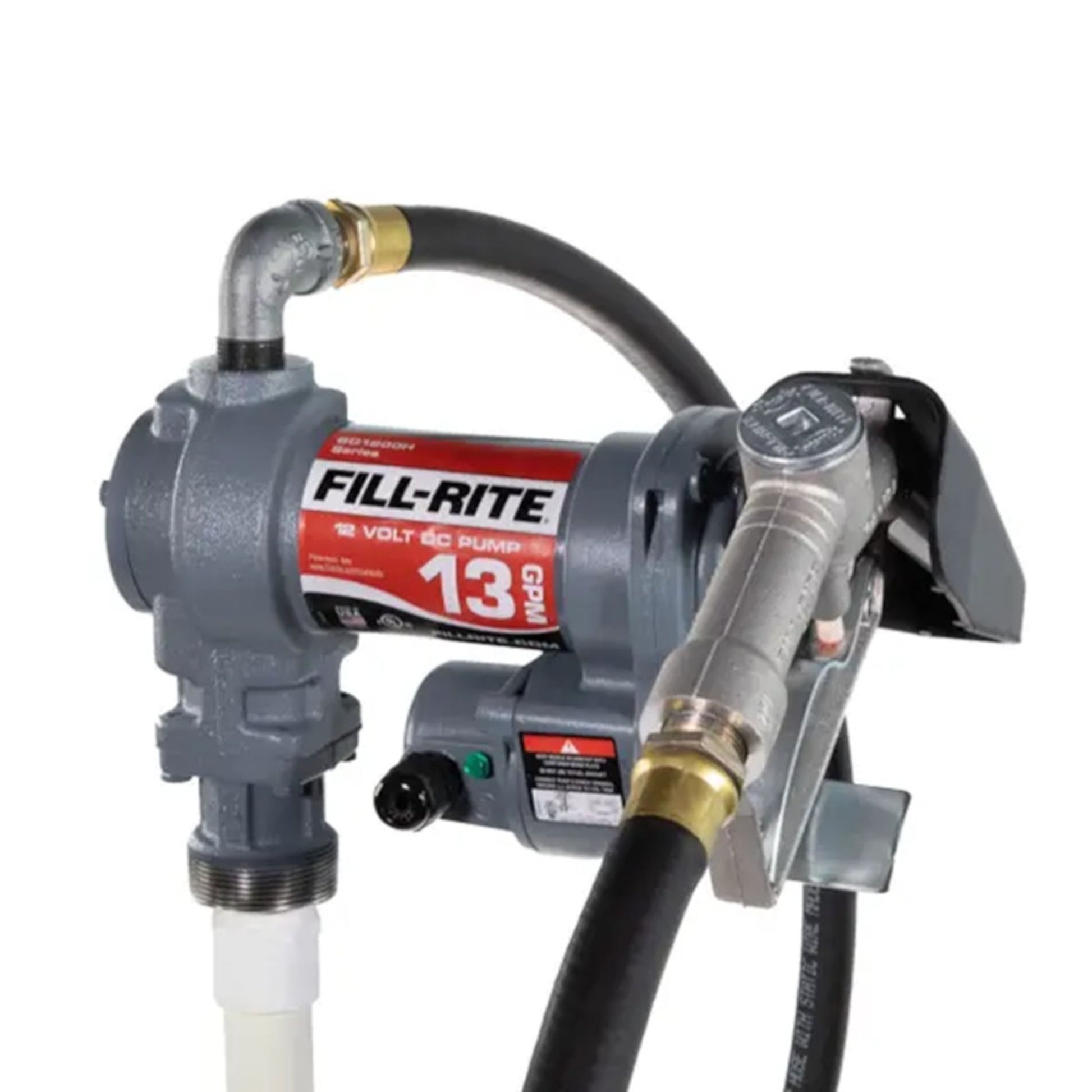

Fill-Rite  12V DC 13 GPM Fuel Transfer Pump with Nozzle

Cast-Iron Construction – heavy-duty, cast-iron construction provides unmatched durability, withstanding the harshest conditions out in the field or at the job site

Reliable Performance – Fill-Rite’s trusted rotary vane pump technology delivers 15 gallons per minute, perfect for filling equipment with fuel tanks from 15-60 gallons

Mobile Tanks – powered by a 12V motor and equipped with a 2 inch bung mount, this pump is ideal for wiring to 12 volt batteries and installing onto transfer tanks in truck beds

Fluid Compatibility – designed for daily use with gasoline, diesel, ethanol blends up to E15, biodiesel blends up B20, kerosene, and mineral spirits

Easy Installation – adjustable electrical junction box rotates 180° for easier wiring and more flexible installations in tight spaces

Long Life – thermally-protected motor prevents overheating, ensuring your pump performs for years worry free

Equipment Safeguard – built-in mesh strainer filters out particulates in your fuel, preventing damage to your equipment

Reliable On-Off Switch – on-off switch lever features a robust metal stopping arm, preventing premature failure from repeated use

Limited Lifetime Warranty – we stand behind our product with an industry-leading Limited Lifetime Warranty, protecting your investment

Max Flowrate: 13 GPM / 49 LPM

Power Type: 12V DC

Compatible Fluids: Diesel, Gasoline, Mineral Spirits, Biodiesel

Inlet Size / Connection / Thread: 1 " / Female / NPT

Outlet Size / Connection / Thread: 0.75 " / Female / NPT

Mounting Size / Thread / Type: 2" / NPT / Bung Mount

Duty Cycle (min): 30 min on / 30 min off

Power Source: Electrical

Motor Power (HP): 0.25

Max Current (A): 20 A

Thermal Protection Switch: Yes

Self Priming: Yes

Suction Lift (ft.): 8 '

Dry Vacuum (in. Hg): 5

Discharge Head (ft): 37 '

Strainer Mesh Size (Micron): 20x20

Max Operating Pressure (PSI): 16
