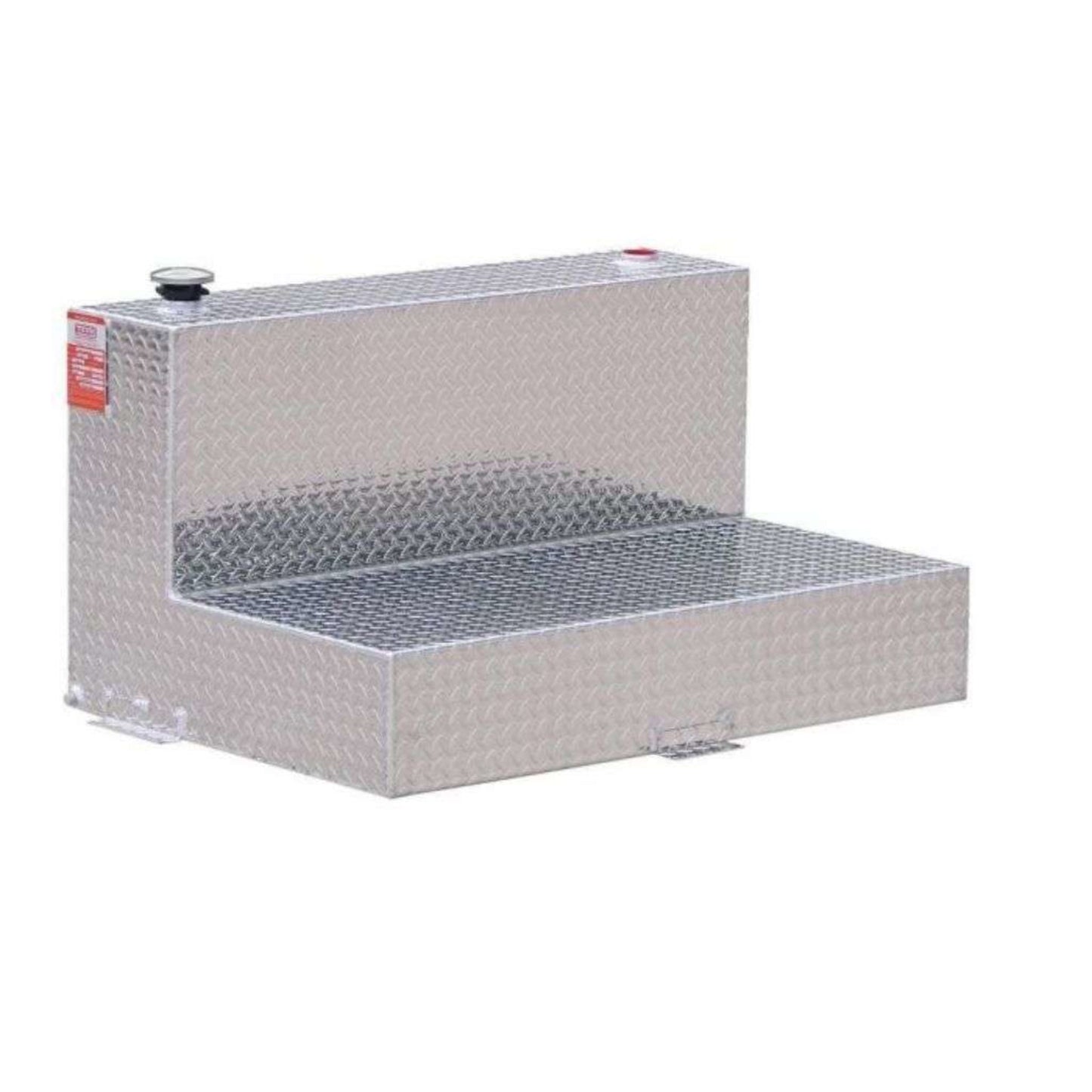

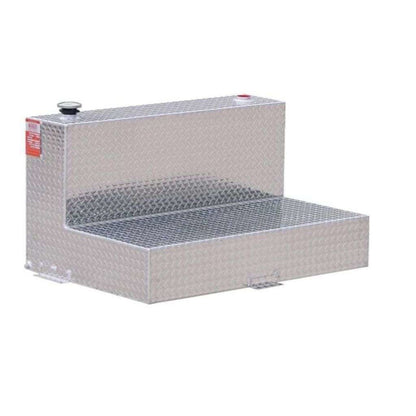

ATI 47 Gallon L-Shaped Aluminum Transfer Fuel Tank

$899.99

~~$1,049.99~~ $899.99

Sale Sold out

Features

Commercial-Grade Aluminum Construction: Built from premium aluminum for strength, corrosion resistance, and long service life.

L-Shaped Tank Design: Engineered to fit under most crossover and chest-style toolboxes.

Reversible Installation: Dual 2-inch NPT bungs allow the fill cap and pump to be mounted on either side.

DOT Special Permit Approved: Authorized by the U.S. Department of Transportation for legal highway transport.

Multi-Fuel Compatibility: Approved for gasoline, diesel, kerosene, aviation fuel, methanol, and other approved liquids.

Fully Baffled Interior: Reduces fuel slosh and movement during transportation.

Lockable Vented Filler Cap: Commercial-grade cap enhances security and proper tank venting.

Reinforced Bung Design: Two reinforced 2-inch NPT bungs provide superior mounting strength.

Integrated Drain Port: 3/8-inch NPT drain allows for maintenance and servicing.

Quality-Control Tested: Pressure tested, leak tested, and cleaned inside and out prior to shipment.

Made in the USA: Manufactured domestically using high-quality materials and workmanship.

Specs

SKU: TTL50

Capacity: 47 Gallons

Material: Aluminum

Tank Style: L-Shaped Transfer / Refueling Tank

Fuel Compatibility: Gasoline, Diesel, Kerosene, Aviation Fuel, Methanol (approved liquids)

DOT Approval: U.S. DOT Special Permit

Fill / Pump Ports: Two 2-Inch NPT Reinforced Bungs

Drain Port: 3/8-Inch NPT

Internal Baffling: Yes

Filler Cap: Lockable, Vented

Mounting Hardware: Hold-Down Brackets Included

Testing: Pressure and Leak Tested

Warranty: 1 Year Limited Warranty

Country of Manufacture: USA

View full details

Product Description

The ATI 47 Gallon L-Shaped Aluminum Transfer Fuel Tank is a commercial-grade refueling tank engineered for safe, legal transport and on-demand fuel transfer in pickup trucks and service vehicles. Manufactured in the USA from premium aluminum, this tank is built to withstand demanding work environments while maintaining corrosion resistance and long service life.

Designed with an L-shaped profile, the tank fits neatly under most crossover or chest-style toolboxes, maximizing bed space without sacrificing fuel capacity. The tank can also be installed in reverse, allowing the toolbox to remain in place when removing the tank. Dual reinforced 2-inch NPT bungs provide flexible mounting locations for the fill cap and fuel transfer pump, letting you configure the tank for left- or right-side operation.

This ATI transfer tank is fully baffled to minimize fuel movement during transport and includes a lockable, commercial-grade vented filler cap for secure storage. It is pressure tested, leak tested, and cleaned inside and out prior to shipment. Approved under a U.S. Department of Transportation Special Permit, this tank is legal for transporting diesel, gasoline, kerosene, aviation fuel, and other approved liquids when installed and used properly. Pair it with a 12V fuel transfer pump to eliminate the need for portable fuel cans and improve efficiency on the job.
